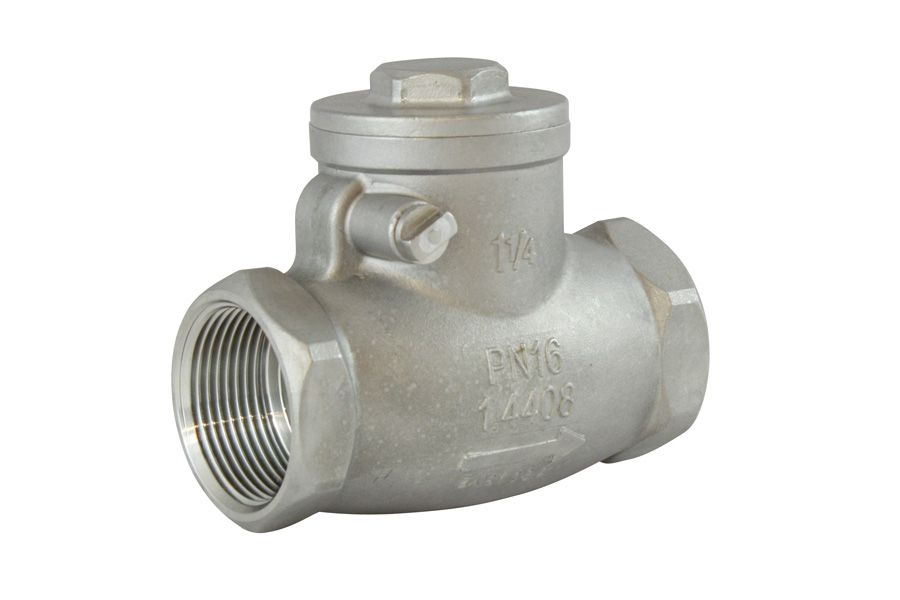

Threaded Swing Check Valve, 04-001.1
Additional information
| Material Body | Stainless steel |
|---|---|
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 220°C |
- Both ends female thread
- Operating pressure max. 16 bar
| Art. Nr. | DN | PN | L | H | kg |
| 04-001.1-1/2 | G1/2 | PN16 | 66 | 46 | 0.30 |
| 04-001.1-3/4 | G3/4 | PN16 | 81 | 54 | 0.50 |
| 04-001.1-1 | G1 | PN16 | 91 | 60 | 0.80 |
| 04-001.1-11/4 | G1-1/4 | PN16 | 107 | 72 | 1.20 |
| 04-001.1-11/2 | G1-1/2 | PN16 | 121 | 75 | 1.50 |
| 04-001.1-2 | G2 | PN16 | 142 | 82 | 2.50 |
| 04-001.1-21/2 | G2-1/2 | PN16 | 159 | 90 | 3.80 |
| 04-001.1-3 | G3 | PN16 | 190 | 104 | 5.90 |
