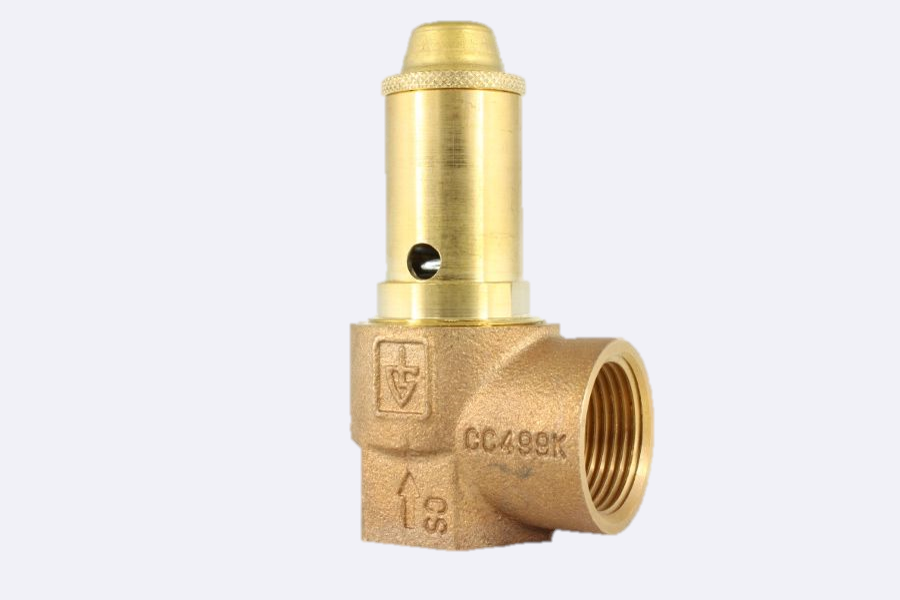

Threaded Safety Valve, 05-006
Additional information
| Connection Type | Female thread acc. ISO 228/1 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Brass |
| Seat Sealing | NBR |
| Temperature Range | -30°C to 130°C |
- Type approval, for neutral liquids
- Spring loaded
- Closed bonnet
- Lifting device
- Spring case seal
- Adjustment range 1 – 16 bar
| Art. Nr. | DN | L | H | kg |
| 05-006-1/2 | G1/2 | 26 | 17 | 0.20 |
| 05-006-3/4 | G3/4 | 31 | 18 | 0.30 |
| 05-006-1 | G1 | 35 | 22 | 0.50 |
| 05-006-11/4 | G1-1/4 | 40 | 25 | 0.70 |
| 05-006-11/2 | G1-1/2 | 46 | 28 | 1.20 |
| 05-006-2 | G2 | 54 | 34 | 1.60 |
