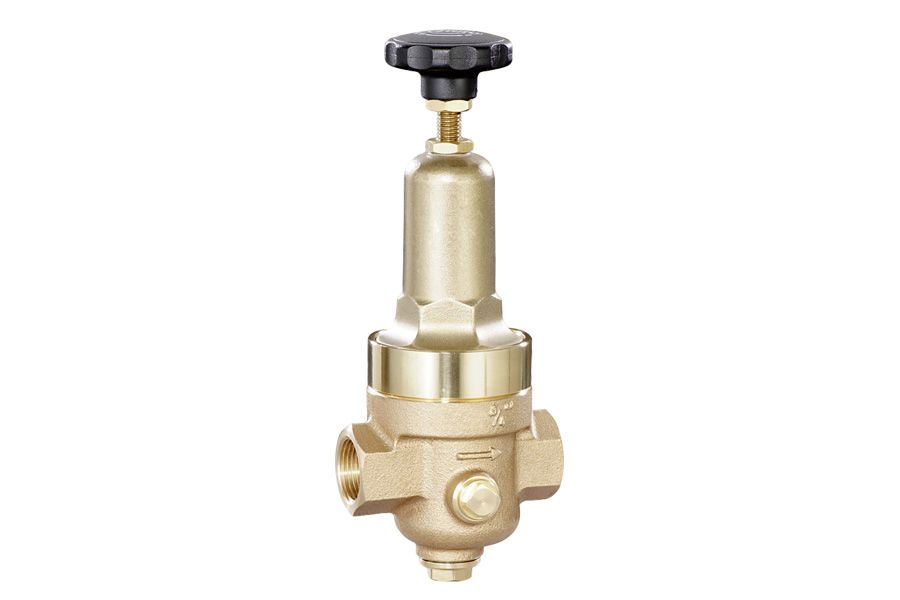

Threaded Pressure Reducing Valve, 05-045-DRV225
Additional information
| Material Body | Gunmetal |
|---|---|
| Inner Parts | Brass |
| Seat Sealing | NBR |
| Temperature Range | 0°C to 75°C |
- Non-balanced single seat valve
- Both ends female thread
- Inlet pressure up to 40 bar
- Outlet pressure 1,5 – 20 bar (6:1)
| Art. Nr. | DN | PN | L | kg |
| 05-045-DRV225-1/4 | G1/4 | PN40 | 70 | 1.00 |
| 05-045-DRV225-3/8 | G3/8 | PN40 | 70 | 1.00 |
| 05-045-DRV225-1/2 | G1/2 | PN40 | 85 | 2.65 |
| 05-045-DRV225-3/4 | G3/4 | PN40 | 85 | 2.65 |
| 05-045-DRV225-1 | G1 | PN40 | 95 | 4.20 |
| 05-045-DRV225-11/4 | G1-1/4 | PN40 | 104 | 7.70 |
| 05-045-DRV225-11/2 | G1-1/2 | PN40 | 108 | 7.70 |
| 05-045-DRV225-2 | G2 | PN40 | 147 | 13.10 |
