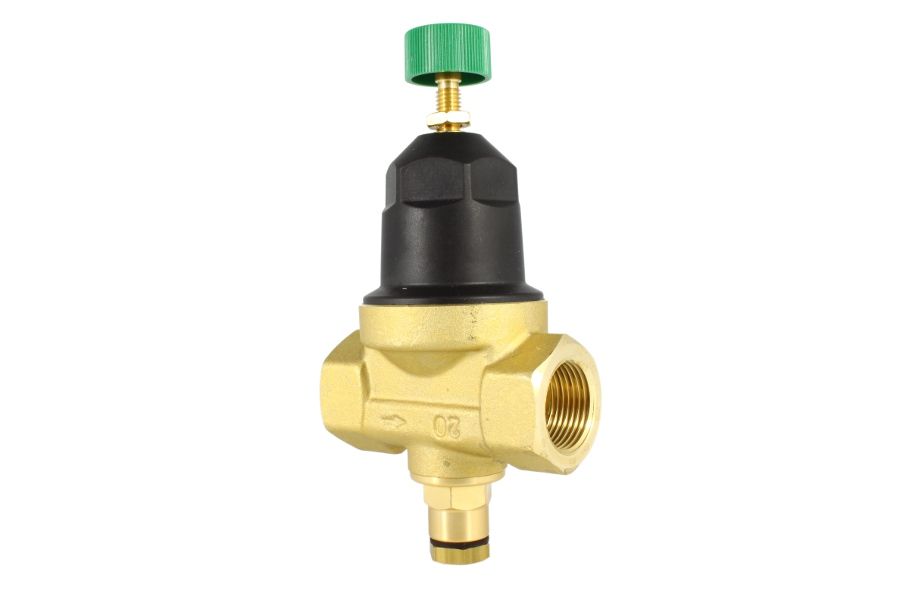

Threaded Pressure Reducing Valve, 05-044
Additional information
| Material Body | Brass, Synthetic |
|---|---|
| Inner Parts | Brass |
| Seat Sealing | NBR |
| Temperature Range | 0°C to 80°C |
- Piston balanced seat
- Both ends female thread
- Inlet pressure max. 40 bar, outlet press. 1-10 bar
| Art. Nr. | DN | PN | L | H | kg |
| 05-044-1/4 | G1/4 | PN40 | 50 | 34 | 0.30 |
| 05-044-3/8 | G3/8 | PN40 | 50 | 34 | 0.30 |
| 05-044-1/2 | G1/2 | PN40 | 65 | 36 | 0.45 |
| 05-044-3/4 | G3/4 | PN40 | 80 | 42 | 0.60 |
| 05-044-1 | G1 | PN40 | 95 | 57 | 1.35 |
| 05-044-11/4 | G1-1/4 | PN40 | 105 | 57 | 1.80 |
| 05-044-11/2 | G1-1/2 | PN40 | 115 | 72 | 2.90 |
| 05-044-2 | G2 | PN40 | 130 | 72 | 3.80 |
