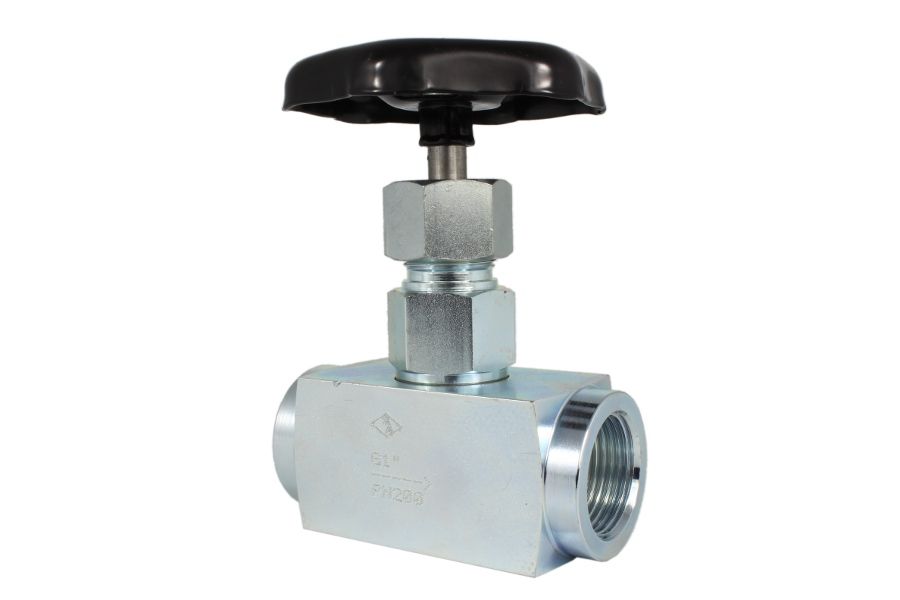

Threaded Needle Valve, 01-027
Additional information
| Connection Type | Female thread acc. ISO 228/1 |
|---|---|
| Material Body | Steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -20°C to 200°C |
- Internal threaded spindle
- Screwed bonnet
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-027-1/8 | G1/8 | PN200 | 45 | 70 | 50 | 0.30 |
| 01-027-1/4 | G1/4 | PN200 | 50 | 72 | 50 | 0.30 |
| 01-027-3/8 | G3/8 | PN200 | 55 | 72 | 50 | 0.30 |
| 01-027-1/2 | G1/2 | PN200 | 60 | 72 | 63 | 0.40 |
| 01-027-3/4 | G3/4 | PN200 | 75 | 95 | 63 | 0.70 |
| 01-027-1 | G1 | PN200 | 100 | 110 | 90 | 1.50 |
| 01-027-11/4 | G1-1/4 | PN200 | 110 | 130 | 100 | 2.50 |
| 01-027-11/2 | G1-1/2 | PN200 | 130 | 140 | 100 | 4.00 |
| 01-027-2 | G2 | PN200 | 130 | 140 | 100 | – |
