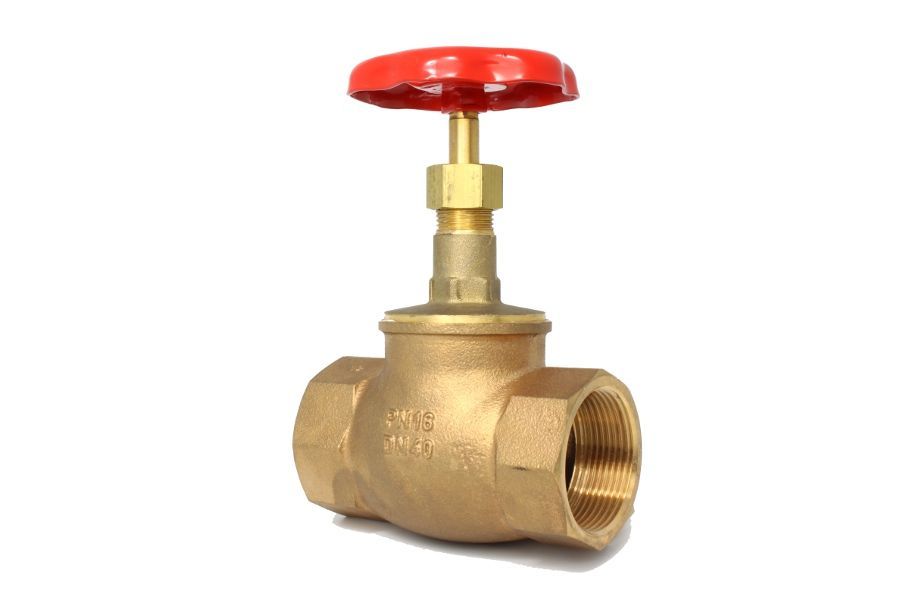

Threaded Globe Valve, 01-002-017
Additional information
| Connection Type | Female thread acc. ISO 228/1 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Brass |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 150°C |
- Screwed bonnet
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-002-017-1/4 | G1/4 | PN16 | 54 | 78 | 55 | 0.30 |
| 01-002-017-3/8 | G3/8 | PN16 | 54 | 78 | 55 | 0.30 |
| 01-002-017-1/2 | G1/2 | PN16 | 54 | 78 | 55 | 0.30 |
| 01-002-017-3/4 | G3/4 | PN16 | 71 | 91 | 70 | 0.50 |
| 01-002-017-1 | G1 | PN16 | 80,5 | 101 | 70 | 0.70 |
| 01-002-017-11/4 | G1-1/4 | PN16 | 96 | 118 | 80 | 1.00 |
| 01-002-017-11/2 | G1-1/2 | PN16 | 104 | 137 | 80 | 1.30 |
| 01-002-017-2 | G2 | PN16 | 128 | 152 | 90 | 2.10 |
| 01-002-017-21/2 | G2-1/2 | PN16 | 155 | 213 | 125 | 4.00 |
| 01-002-017-3 | G3 | PN16 | 173 | 230 | 150 | 5.50 |
| 01-002-017-4 | G4 | PN16 | 199 | 260 | 150 | 12.00 |
