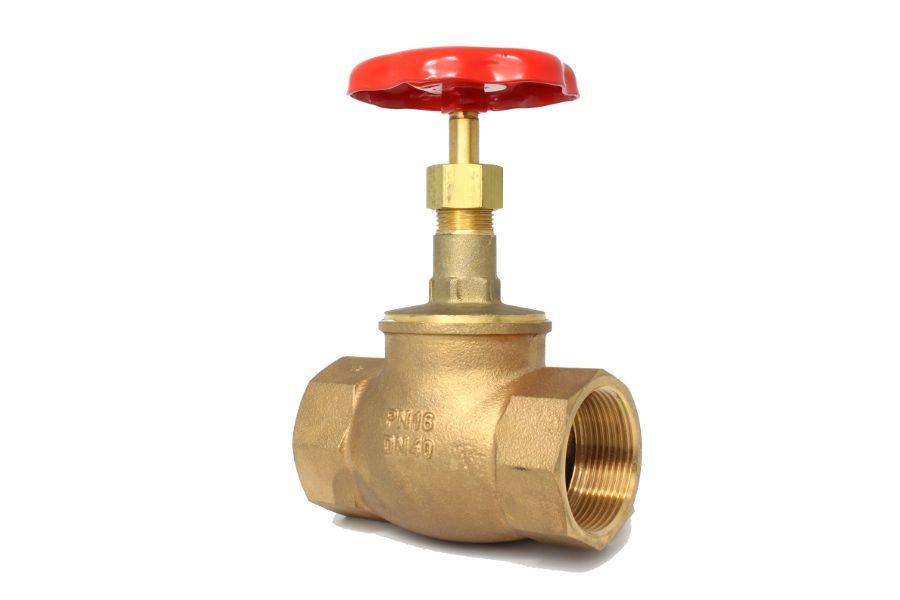

Threaded Globe Valve, 01-001
Additional information
| Connection Type | Female thread acc. ISO 228/1 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Brass |
| Seat Sealing | PTFE |
| Temperature Range | -10°C to 150°C |
- Screwed bonnet
| Art. Nr. | DN | PN | L | H | kg |
| 01-001-1/4 | G1/4 | PN16 | 51 | 92 | 0.30 |
| 01-001-3/8 | G3/8 | PN16 | 51 | 92 | 0.30 |
| 01-001-1/2 | G1/2 | PN16 | 61,5 | 92 | 0.30 |
| 01-001-3/4 | G3/4 | PN16 | 71,5 | 102 | 0.50 |
| 01-001-1 | G1 | PN16 | 82 | 116 | 0.70 |
| 01-001-11/4 | G1-1/4 | PN16 | 97 | 140 | 1.10 |
| 01-001-11/2 | G1-1/2 | PN16 | 107 | 147 | 1.30 |
| 01-001-2 | G2 | PN16 | 132 | 170 | 2.10 |
| 01-001-21/2 | G2-1/2 | PN16 | 160 | 210 | 3.50 |
