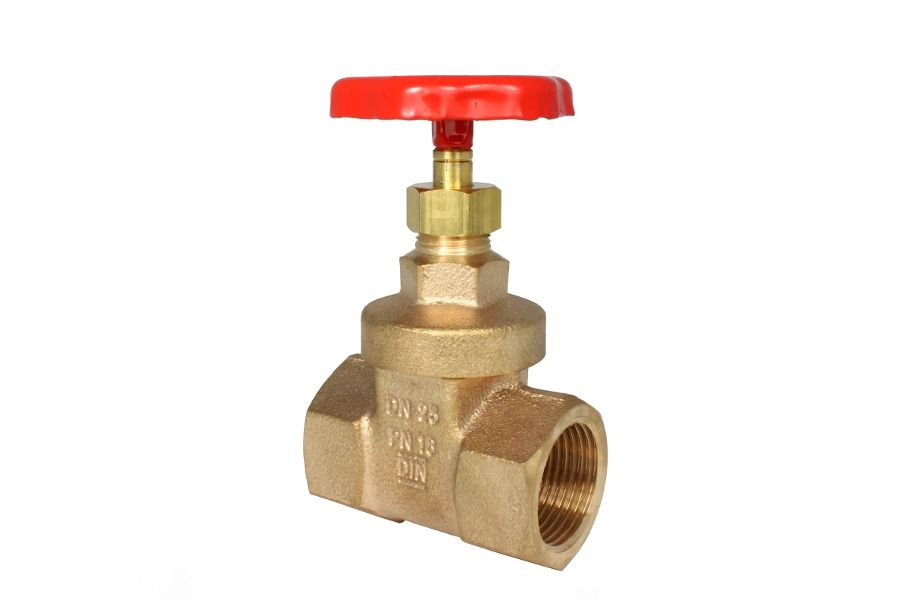

Threaded Gate Valve, 02-003
Additional information
| Connection Type | Female thread acc. ISO 228/1 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Gunmetal |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 120°C |
- Full bore, gland packing
- Non-rising stem
- Max. operating pressure 16 bar
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 02-003-1/4 | G1/4 | PN16 | 48 | 78 | 50 | 0.30 |
| 02-003-3/8 | G3/8 | PN16 | 48 | 78 | 50 | 0.30 |
| 02-003-1/2 | G1/2 | PN16 | 55 | 80 | 50 | 0.30 |
| 02-003-3/4 | G3/4 | PN16 | 60 | 89 | 50 | 0.40 |
| 02-003-1 | G1 | PN16 | 68 | 101 | 60 | 0.60 |
| 02-003-11/4 | G1-1/4 | PN16 | 76 | 118 | 80 | 1.00 |
| 02-003-11/2 | G1-1/2 | PN16 | 80 | 127 | 80 | 1.20 |
| 02-003-2 | G2 | PN16 | 93 | 148 | 90 | 2.10 |
| 02-003-21/2 | G2-1/2 | PN16 | 110 | 170 | 100 | 2.90 |
| 02-003-3 | G3 | PN16 | 120 | 208 | 120 | 4.40 |
