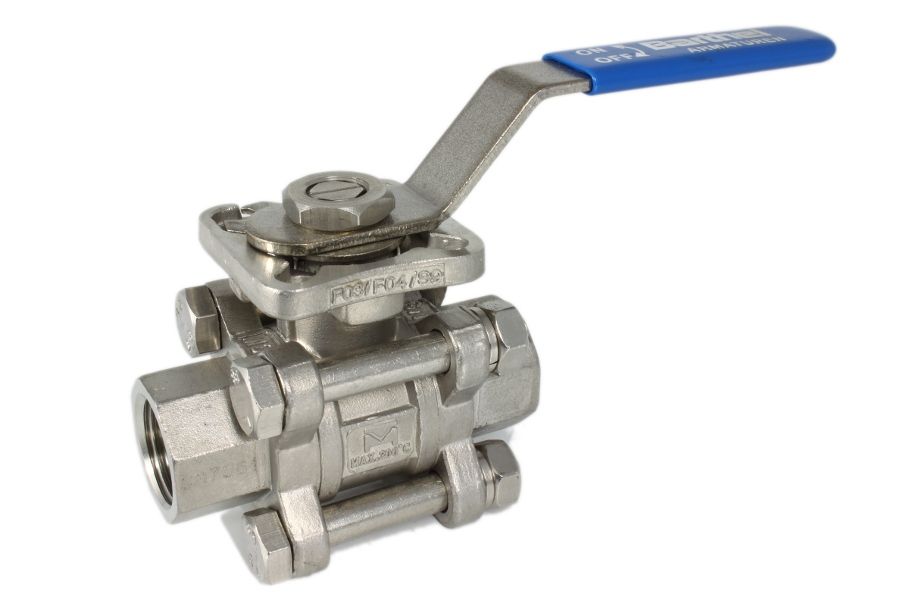

Threaded Ball Valve, 03-126.1
Additional information
| Connection Type | Flange acc. to ISO 5211 |
|---|---|
| Material Body | Stainless steel |
| Inner Parts | Stainless steel |
| Seat Sealing | PTFE |
| Temperature Range | -20°C to 200°C |
- Full bore
- Tri-partite body
- Blow-out proof stem
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 03-126.1-1/4 | G1/4 | PN63 | 55 | 63 | 8 | 0.55 |
| 03-126.1-3/8 | G3/8 | PN63 | 60 | 63 | 10 | 0.55 |
| 03-126.1-1/2 | G1/2 | PN63 | 75 | 63 | 15 | 0.55 |
| 03-126.1-3/4 | G3/4 | PN63 | 80 | 69 | 20 | 0.75 |
| 03-126.1-1 | G1 | PN63 | 90 | 76 | 25 | 1.05 |
| 03-126.1-11/4 | G1-1/4 | PN63 | 109,8 | 84 | 32 | 1.80 |
| 03-126.1-11/2 | G1-1/2 | PN63 | 119,5 | 99 | 38 | 2.45 |
| 03-126.1-2 | G2 | PN63 | 140 | 108 | 50 | 3.90 |
| 03-126.1-21/2 | G2-1/2 | PN63 | 185 | 122 | 65 | – |
| 03-126.1-3 | G3 | PN63 | 205 | 130 | 76 | – |
| 03-126.1-4 | G4 | PN63 | 240 | 172 | 100 | – |
