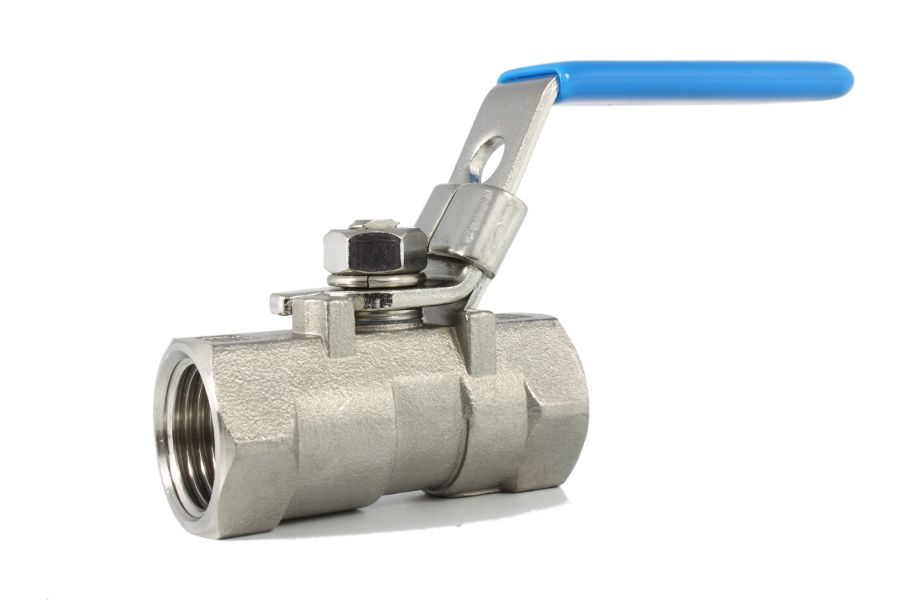

Threaded Ball Valve, 03-125.5
Additional information
| Material Body | Stainless steel |
|---|---|
| Inner Parts | Stainless steel |
| Seat Sealing | PTFE |
| Temperature Range | -20°C to 200°C |
- Reducedbore
- One-piece body
- Blow-out proof stem
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 03-125.5-1/4 | G1/4 | PN63 | 39 | 35 | 5 | 0.07 |
| 03-125.5-3/8 | G3/8 | PN63 | 44 | 42 | 7 | 0.10 |
| 03-125.5-1/2 | G1/2 | PN63 | 56,5 | 42 | 9 | 0.19 |
| 03-125.5-3/4 | G3/4 | PN63 | 59 | 44 | 12,5 | 0.26 |
| 03-125.5-1 | G1 | PN63 | 71 | 57 | 15 | 0.40 |
| 03-125.5-11/4 | G1-1/4 | PN63 | 78 | 62 | 20 | 0.68 |
| 03-125.5-11/2 | G1-1/2 | PN63 | 83 | 62 | 25 | 0.90 |
| 03-125.5-2 | G2 | PN63 | 100 | 68 | 32 | 1.40 |
