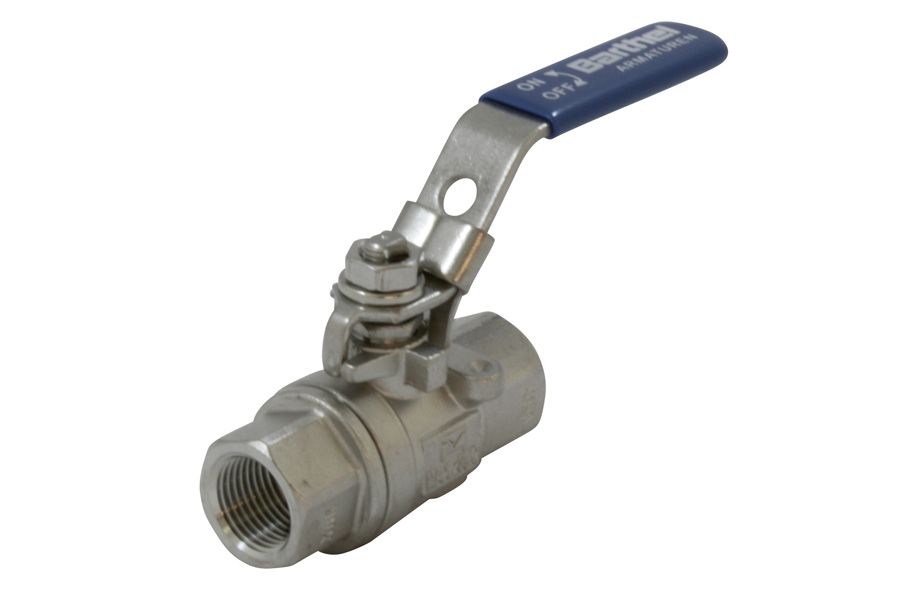

Threaded Ball Valve, 03-125-2006M3
Additional information
| Connection Type | Length acc. to DIN 3202/4-M3 |
|---|---|
| Material Body | Stainless steel |
| Inner Parts | Stainless steel |
| Seat Sealing | PTFE |
| Temperature Range | -20°C to 200°C |
- Full bore
- Bi-partite body
- Blow-out proof stem
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 03-125-2006M3-1/4 | G1/4 | PN63 | 55 | 50 | 11,6 | 0.30 |
| 03-125-2006M3-3/8 | G3/8 | PN63 | 60 | 50 | 12,7 | 0.30 |
| 03-125-2006M3-1/2 | G1/2 | PN63 | 75 | 50 | 15 | 0.30 |
| 03-125-2006M3-3/4 | G3/4 | PN63 | 80 | 60 | 20 | 0.60 |
| 03-125-2006M3-1 | G1 | PN63 | 90 | 70 | 25 | 0.90 |
| 03-125-2006M3-11/4 | G1-1/4 | PN63 | 110 | 80 | 32 | 1.30 |
| 03-125-2006M3-11/2 | G1-1/2 | PN63 | 120 | 90 | 38 | 2.00 |
| 03-125-2006M3-2 | G2 | PN63 | 140 | 90 | 50 | 3.20 |
| 03-125-2006M3-21/2 | G2-1/2 | PN63 | 185 | 145 | 65 | 6.00 |
| 03-125-2006M3-3 | G3 | PN63 | 205 | 145 | 80 | 10.10 |
