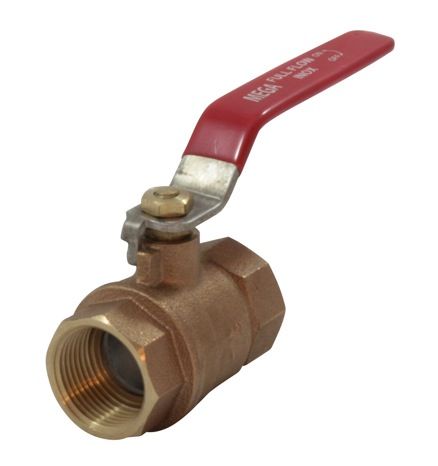

Threaded Ball Valve, 03-118
Additional information
| Connection Type | G11/2 – G3 max. operating pressure 16 bar |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Brass |
| Seat Sealing | PTFE |
| Temperature Range | 0°C to 150°C |
- Full bore
- G1/4 – G11/4 max. operating pressure 20 bar
| Art. Nr. | DN | PN | L | H | kg |
| 03-118-1/2 | G1/2 | PN20 | 52 | 51 | 0.21 |
| 03-118-3/4 | G3/4 | PN20 | 57 | 53 | 0.32 |
| 03-118-1 | G1 | PN20 | 68 | 68 | 0.55 |
| 03-118-11/4 | G1-1/4 | PN20 | 82 | 77 | 0.78 |
| 03-118-11/2 | G1-1/2 | PN20 | 92 | 84 | 1.28 |
| 03-118-2 | G2 | PN20 | 107 | 92 | 1.75 |
| 03-118-21/2 | G2-1/2 | PN20 | 136 | 114 | 3.55 |
| 03-118-3 | G3 | PN20 | 161 | 123 | 5.58 |
