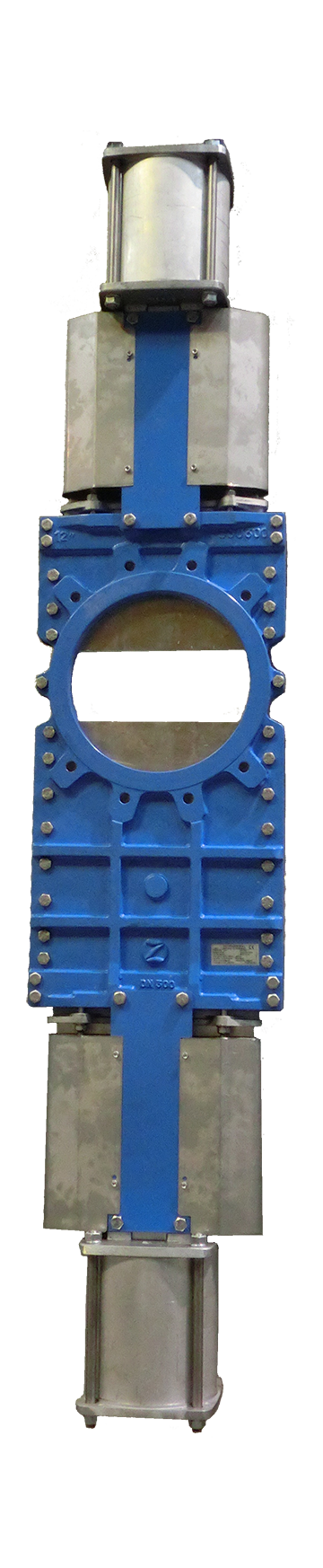

T300 – Through Conduit Valve
Additional information
| Connection Type | Flanges acc. to ANSI 125/150, Flanges acc. to DIN PN10 / PN16 / PN25 |
|---|---|
| Material Body | 254SMO, A216 WCB, CF8 (AISI304), CF8M (AISI316), GG25, GGG40, GGG50, SS310, SS904 |
| Inner Parts | 254SMO, HARDOX, SS304L, SS310, SS316L, SS316TI, SS904L |
| Seat Sealing | EPDM, NBR, SILICONE, VITON |
The Model 300 is a Bidirectional cutting wafer knife gate valve where the knife moves completely through the inner part of the body cutting the flow. The knife has a central round-shaped blade which, when opened, aligns with the bore of the valve hole, forming a clean straight-through path. Therefore, the fluid flows without any obstacle.
Designed for fluids with suspended solids, with a maximum concentration of 20%.
Internal guides for smooth movements.
High temperature design available with internal graphite sealings.
