T200 – Unidirectional
Additional information
| Connection Type | Flanges acc. to ANSI 125/150, Flanges acc. to DIN PN10 / PN16 / PN25 |
|---|---|
| Material Body | 254SMO, A216 WCB, CF8 (AISI304), CF8M (AISI316), GG25, GGG40, GGG50, SS310, SS904 |
| Inner Parts | 254SMO, HARDOX, SS304L, SS310, SS316L, SS316TI, SS904L |
| Seat Sealing | EPDM, NBR, SILICONE, VITON |

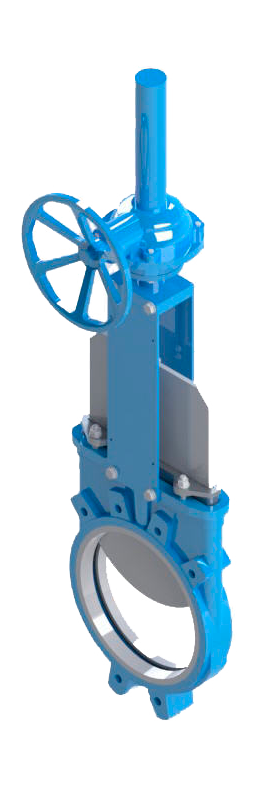

The Model 200 knife gate valve is an Unidirectional wafer valve designed for industry in general.
- Cast body of one integral piece with internal guides to support the knife.
- Seating wedges help the knife to close against the body and seat.
- Directional arrow in the body showing the correct mounting position.
- High flow rates with low pressure drop
- Internal design avoids any build up of solids that would prevent valve from closing
- Gate with rounded edges prolongs the working life of the rings and packing.
- Recommended for water with maximum concentration of solid of 5%.
