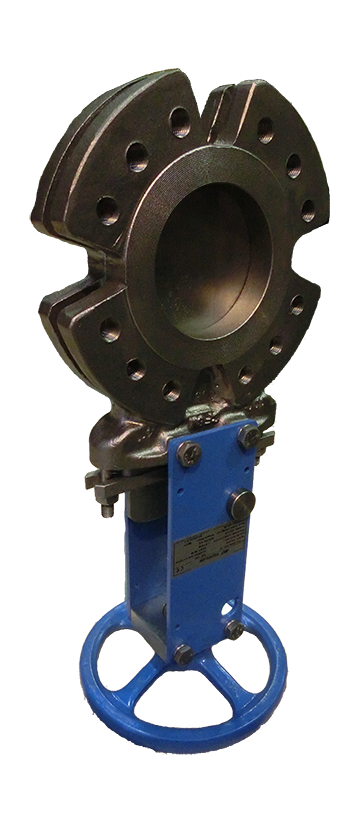

T200 – Tappi
Additional information
| Connection Type | Flanges acc. to ANSI 125/150, Flanges acc. to DIN PN10 / PN16 / PN25 |
|---|---|
| Material Body | 254SMO, A216 WCB, CF8 (AISI304), CF8M (AISI316), GG25, GGG40, GGG50, SS310, SS904 |
| Inner Parts | 254SMO, 310S, AISI304L, AISI316L, AISI316TI, AISI904L, HARDOX |
| Seat Sealing | EPDM, NBR, SILICONE, VITON |
Unidirectional lug type valve, which differs from the Full Lug Type in the thickness of body and gate according to MSS-SP81.
- Cast body of one integral piece with internal guides to support the knife.
- Seating wedges help the knife to close against the body and seat.
- Directional arrow in the body showing the correct mounting position.
- Gate with rounded edges: prolongs the working life of the rings and packings
- High flow rates with low pressure drop
- Internal design avoids any build-up of solids that would prevent valve from closing
- Recommended for water with maximum concentration of solid of 5%.
