T200 – Bidirectional
Additional information
| Connection Type | Flanges acc. to ANSI 125/150, Flanges acc. to DIN PN10 / PN16 / PN25 |
|---|---|
| Material Body | 254SMO, A216 WCB, AISI 310, AISI 316L, AISI 316TI, AISI 904, Aluminium, CF3M (AISIS 304), CF8M (AISI316), GG25, GGG40, GGG50 |
| Inner Parts | 254SMO, 310S, AISI304L, AISI316L, AISI316TI, AISI904L, HARDOX |
| Seat Sealing | EPDM, FLUCAST, GRAFHITE, NITRILE (NBR), PTFE, SILICONE, VITON |

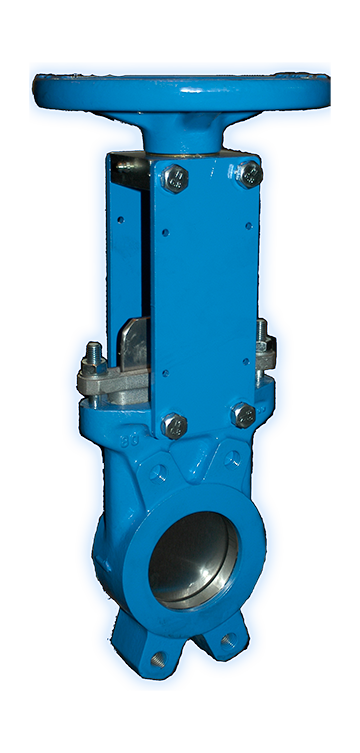

The Bidirectional T200 is a wafer-design knife gate valve which can receive the fluid in both directions. Its general purpose is for fluid loaded with solids in suspension, main application in plants and sewage drives.
- Provides high flow rates with low pressure drop.
- The internal design of the body avoids any build-up of solids in the seat area.
- During the working time of the valve, the knife is in contact with the joints.
- Cast body of one integral piece with internal guides to support the knife and with wedges on both sides to work with fluids in both directions with the same pressure.
- Recommended for water with maximum solid concentration of 5%.
- Two directional arrows in the body show the correct mounting position.
