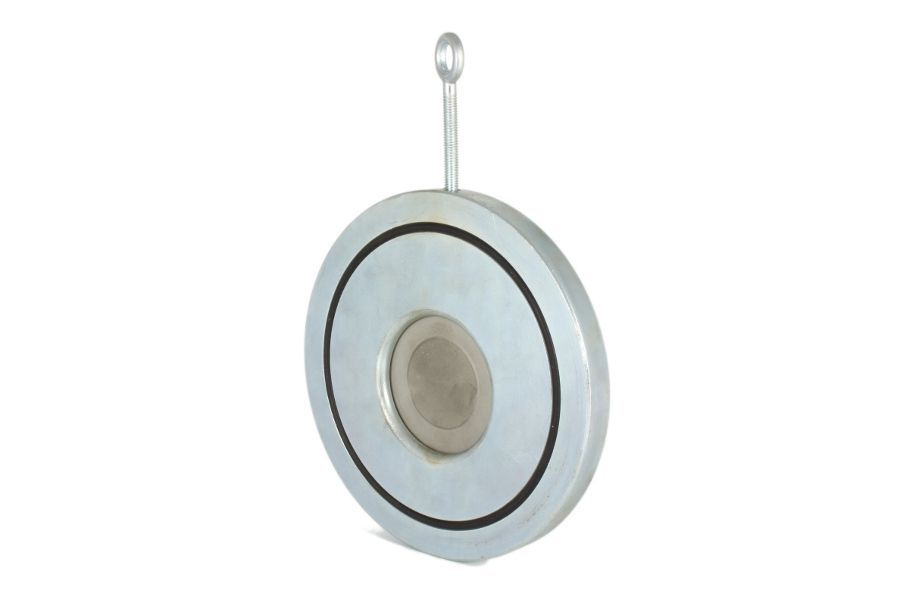

Swing Check Valve Wafer Type, 04-212.1
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Steel |
| Inner Parts | Steel |
| Seat Sealing | NBR |
| Temperature Range | -40°C to 100°C |
- Can be used in horizontal pipelines only (or at flow from bottom to top)
| Art. Nr. | DN | PN | L | ØD | kg |
| 04-212.1-40 | DN40 | PN16 | 16 | 22 | 0.70 |
| 04-212.1-50 | DN50 | PN16 | 16 | 30 | 0.90 |
| 04-212.1-65 | DN65 | PN16 | 16 | 37 | 1.00 |
| 04-212.1-80 | DN80 | PN16 | 16 | 48 | 1.50 |
| 04-212.1-100 | DN100 | PN16 | 16 | 70 | 2.00 |
| 04-212.1-125 | DN125 | PN16 | 18 | 95 | 3.50 |
| 04-212.1-150 | DN150 | PN16 | 19 | 121 | 5.50 |
| 04-212.1-200 | DN200 | PN16 | 29 | 155 | 12.50 |
| 04-212.1-250 | DN250 | PN16 | 29 | 196 | 17.00 |
| 04-212.1-300 | DN300 | PN16 | 38 | 230 | 30.00 |
| 04-212.1-350 | DN350 | PN16 | 41 | 250 | 37.00 |
| 04-212.1-400 | DN400 | PN16 | 51 | 303 | 57.00 |
| 04-212.1-450 | DN450 | PN16 | 51 | 258 | 68.00 |
| 04-212.1-500 | DN500 | PN16 | 61 | 398 | 105.00 |
