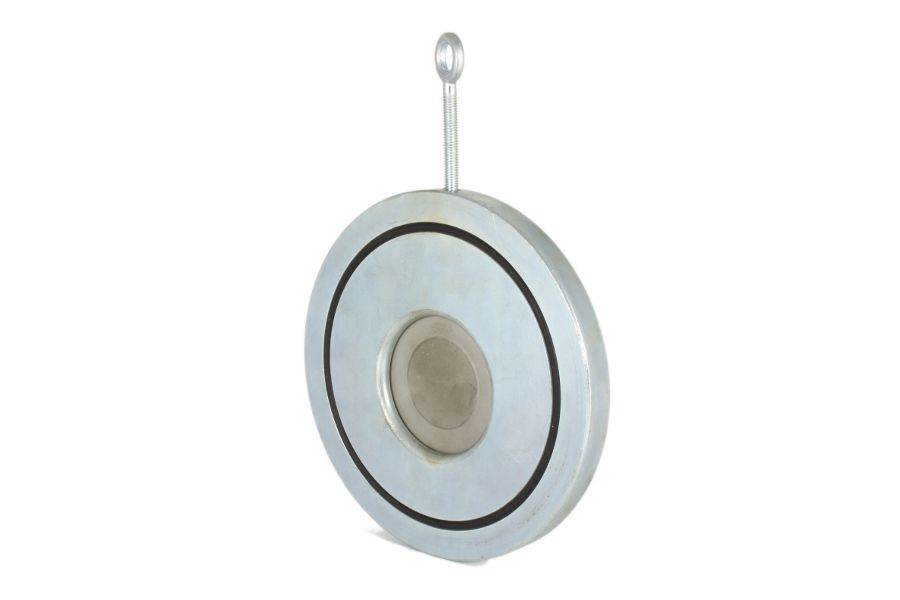

Swing Check Valve Wafer Type, 04-212
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Steel |
| Inner Parts | Steel |
| Seat Sealing | NBR |
| Temperature Range | -40°C to 100°C |
- Can be used in horizontal pipelines only (or at flow from bottom to top)
| Art. Nr. | DN | PN | L | ØD | kg |
| 04-212-40 | DN40 | PN16 | 14 | 22 | 0.70 |
| 04-212-50 | DN50 | PN16 | 14 | 32 | 9.00 |
| 04-212-65 | DN65 | PN16 | 14 | 40 | 1.20 |
| 04-212-80 | DN80 | PN16 | 14 | 54 | 1.50 |
| 04-212-100 | DN100 | PN16 | 18 | 70 | 2.40 |
| 04-212-125 | DN125 | PN16 | 18 | 92 | 3.40 |
| 04-212-150 | DN150 | PN16 | 20 | 112 | 4.60 |
| 04-212-200 | DN200 | PN16 | 22 | 154 | 7.50 |
| 04-212-250 | DN250 | PN16 | 26 | 200 | 13.10 |
| 04-212-300 | DN300 | PN16 | 32 | 240 | 20.40 |
| 04-212-350 | DN350 | PN16 | 38 | 270 | 32.00 |
| 04-212-400 | DN400 | PN16 | 44 | 310 | 48.00 |
| 04-212-450 | DN450 | PN16 | 50 | 360 | 63.00 |
| 04-212-500 | DN500 | PN16 | 56 | 405 | 87.00 |
