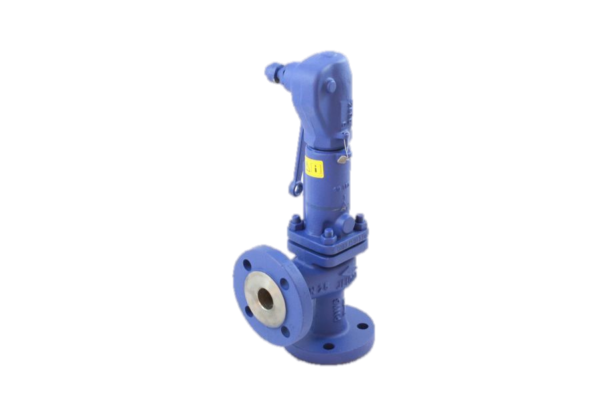

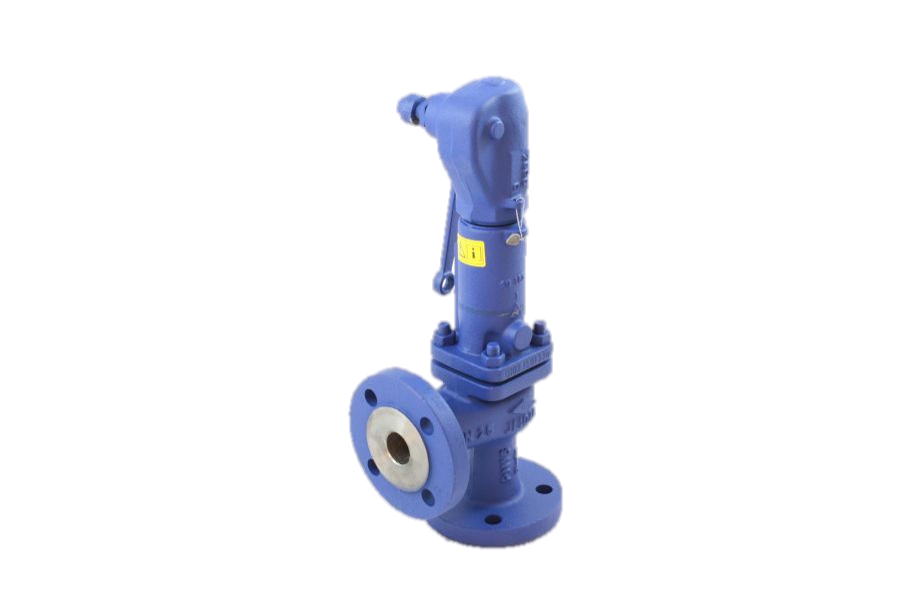

Proportional Safety Valve, Spring Loaded, 05-026GHGA
Additional information
| Connection Type | Flanges acc. to DIN PN40 |
|---|---|
| Material Body | Cast steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 300°C |
- Type approval
- Open bonnet
- Open lifting device
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 05-026GHGA-20 | DN20 | PN40 | 95 | 260 | 105 | 5.00 |
| 05-026GHGA-25 | DN25 | PN40 | 100 | 270 | 115 | 5.50 |
| 05-026GHGA-32 | DN32 | PN40 | 105 | 285 | 140 | 8.00 |
| 05-026GHGA-40 | DN40 | PN40 | 115 | 290 | 150 | 9.50 |
| 05-026GHGA-50 | DN50 | PN40 | 125 | 290 | 165 | 11.50 |
| 05-026GHGA-65 | DN65 | PN40 | 145 | 340 | 185 | 15.50 |
| 05-026GHGA-80 | DN80 | PN40 | 155 | 400 | 200 | 20.50 |
| 05-026GHGA-100 | DN100 | PN40 | 175 | 450 | 235 | 33.00 |
