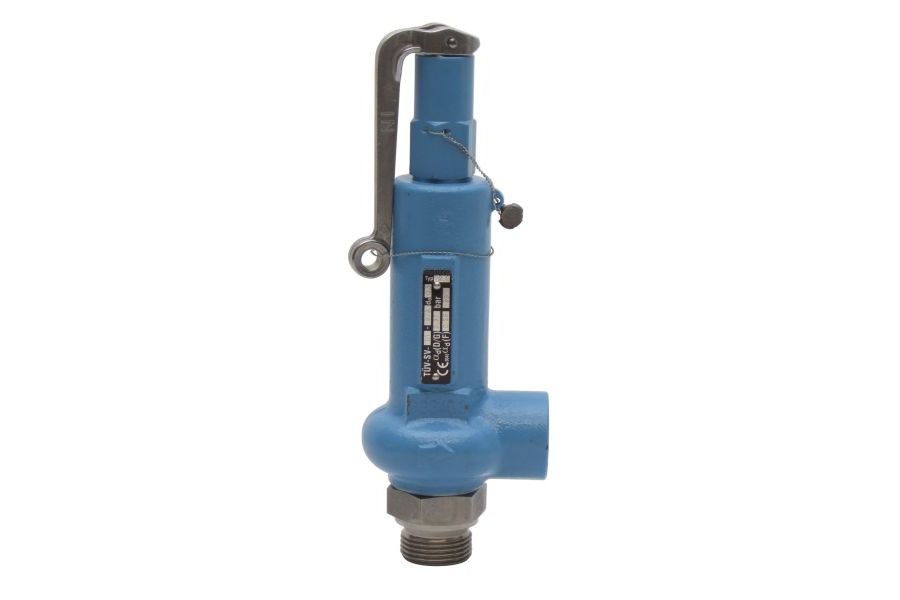

Proportional Relief Valve, Spring Loaded, 05-020.1
Additional information
| Material Body | Chromium steel |
|---|---|
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 280°C |
- Without type approval
- Closed bonnet
- Lifting lever
- Set pressure up to 400 bar
| Art. Nr. | DN | L | H | kg |
| 05-020.1-10 | DN10 | 12 | 200 | 1.00 |
| 05-020.1-15-1/2-34 | DN15 | 14 | 200 | 1.00 |
| 05-020.1-20-3/4-34 | DN20 | 14 | 200 | 1.00 |
| 05-020.1-15-1/2-40 | DN15 | 14 | 230 | 1.60 |
| 05-020.1-20-3/4-40 | DN20 | 16 | 230 | 1.60 |
| 05-020.1-25 | DN25 | 18 | 230 | 1.60 |
| 05-020.1-32 | DN32 | 20 | 230 | 1.80 |
| 05-020.1-40 | DN40 | 20 | 230 | 1.80 |
| 05-020.1-50 | DN50 | 20 | 230 | 1.80 |
