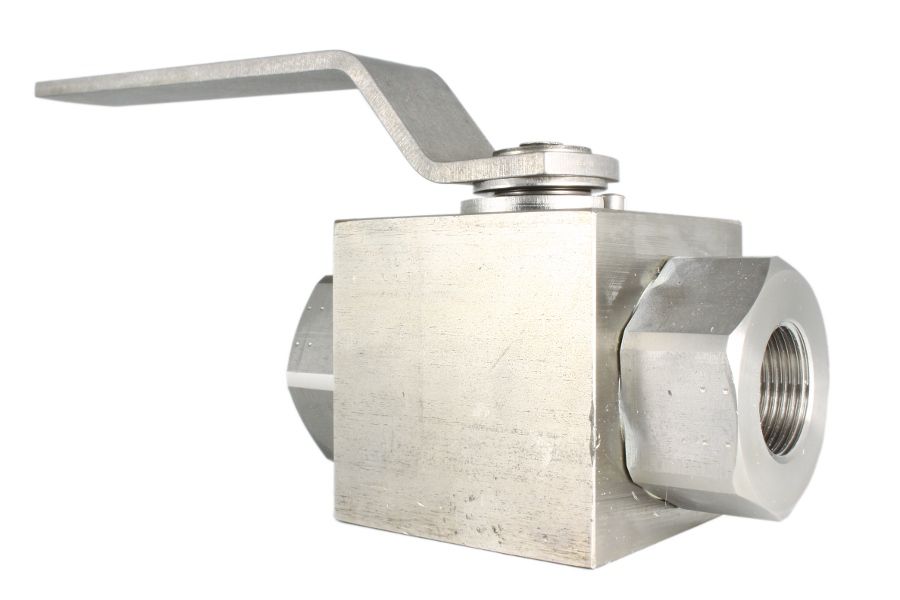

High Pressure Threaded Ball Valve, 03-131
Additional information
| Connection Type | Female thread acc. to ISO 1179-1 |
|---|---|
| Material Body | Stainless steel |
| Inner Parts | Stainless steel |
| Seat Sealing | PTFE |
| Temperature Range | -20°C to 200°C |
- Both ends female thread
| Art. Nr. | DN | PN | L | kg |
| 03-131-1/8 | G1/8 | PN400/500 | 69 | 0.22 |
| 03-131-1/4 | G1/4 | PN400/500 | 69 | 0.21 |
| 03-131-3/8 | G3/8 | PN400/500 | 73 | 0.43 |
| 03-131-1/2 | G1/2 | PN400/500 | 82 | 0.67 |
| 03-131-5/8 | G5/8 | PN400/500 | 88 | 0.97 |
| 03-131-3/4 | G3/4 | PN400/500 | 93 | 1.28 |
| 03-131-1 | G1 | PN400/500 | 113 | 1.98 |
| 03-131-11/4 | G1-1/4 | PN400/500 | 110 | 2.62 |
| 03-131-11/2 | G1-1/2 | PN400/500 | 114 | 3.99 |
| 03-131-2 | G2 | PN400/500 | 129 | 5.02 |
