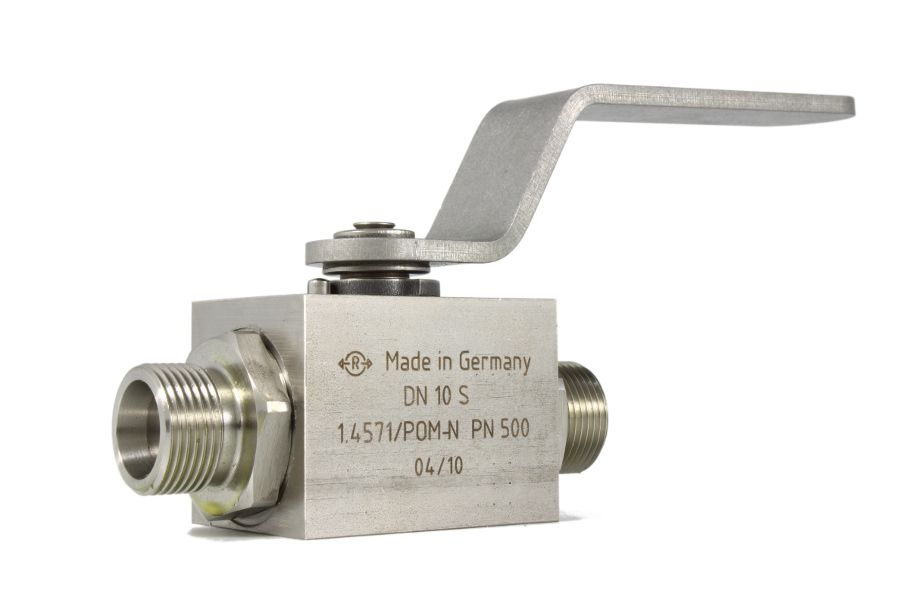

High Pressure Ball Valve, 03-136
Additional information
| Material Body | Stainless steel |
|---|---|
| Inner Parts | Stainless steel |
| Seat Sealing | POM/NBR |
| Temperature Range | -10°C to 80°C |
- Both ends cutting ring connections
- Series S
| Art. Nr. | DN | PN | L | kg |
| 03-136-4 | DN4 | PN315/500 | 76/91 | 0.39 |
| 03-136-6 | DN6 | PN315/500 | 76/93 | 0.46 |
| 03-136-8 | DN8 | PN315/500 | 89/106 | 0.84 |
| 03-136-10 | DN10 | PN315/500 | 93/112 | 0.85 |
| 03-136-12 | DN12 | PN315/500 | 96/115 | 1.06 |
| 03-136-16 | DN16 | PN315/500 | 99/121 | 1.08 |
| 03-136-20 | DN20 | PN315/500 | 110/134 | 1.72 |
| 03-136-25 | DN25 | PN315/500 | 120/146 | 2.15 |
| 03-136-32 | DN32 | PN315/500 | 132/161 | 6.07 |
