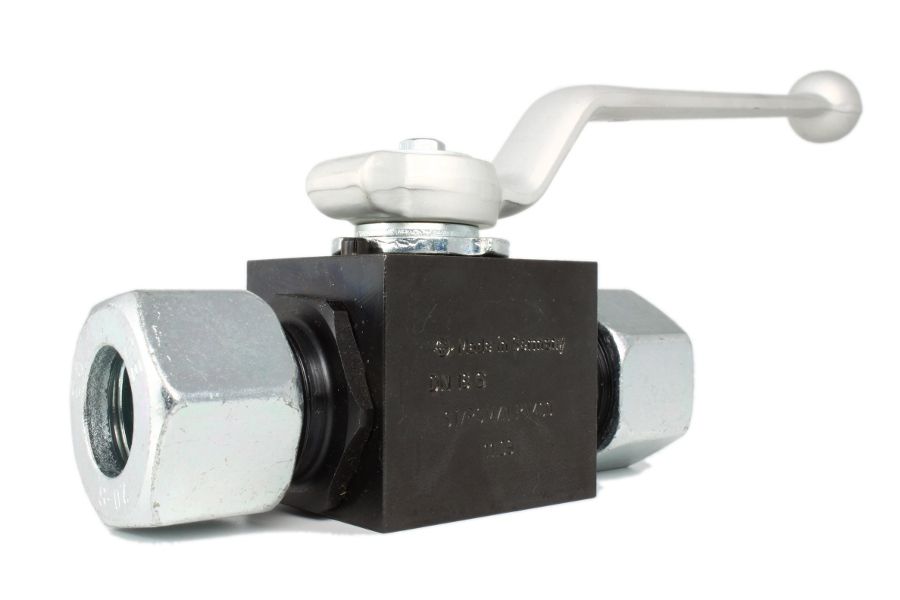

High Pressure Ball Valve, 03-135

SKU: 03-135 Category:

Additional information

Material Body

Steel

Inner Parts

Steel chrome-plated

Seat Sealing

POM/NBR

Temperature Range

-10°C to 80°C

  • Both ends cutting ring connections
  • Series S
Art. Nr. DN PN L kg
03-135-4 DN4 PN315/500 73/88 0.21
03-135-6 DN6 PN315/500 73/90 0.22
03-135-8 DN8 PN315/500 77/94 0.43
03-135-10 DN10 PN315/500 81/100 0.44
03-135-12 DN12 PN315/500 87/106 0.65
03-135-16 DN16 PN315/500 90/112 0.90
03-135-20 DN20 PN315/500 107/131 1.30
03-135-25 DN25 PN315/500 120/146 1.90
03-135-32 DN32 PN315/500 127/156 3.27
