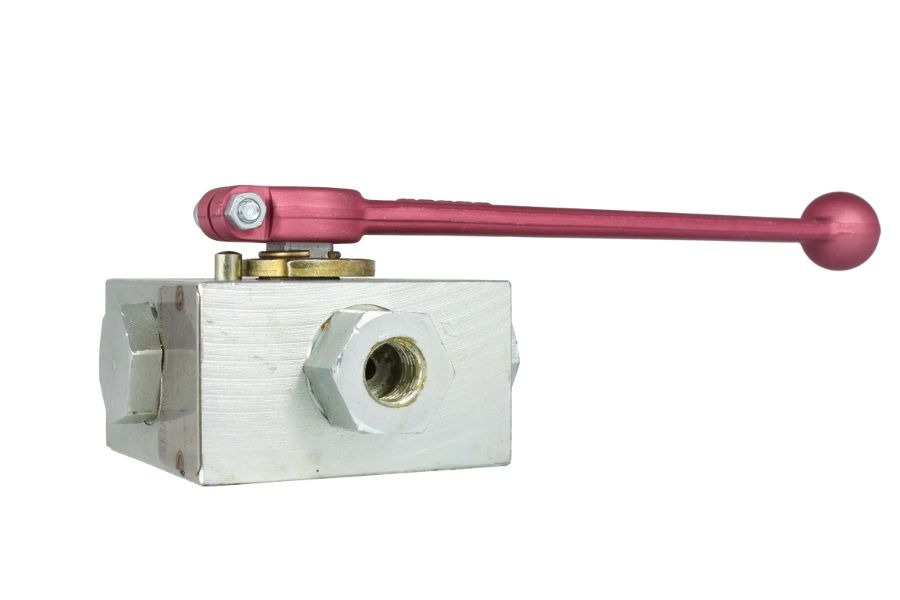

High Pressure 4-Way Threaded Ball Valve, 03-144.1
Additional information
| Connection Type | Female thread acc. to ISO 1179-1 |
|---|---|
| Material Body | Steel |
| Inner Parts | Brass chrome plated |
| Seat Sealing | POM/NBR |
| Temperature Range | -10°C to 80°C |
- Controlled ball
- Positive overlap
- T-port
| Art. Nr. | DN | PN | L | H | kg |
| 03-144.1-4 | DN4 | PN100/500 | 102 | 40 | 1.63 |
| 03-144.1-6 | DN6 | PN100/500 | 102 | 40 | 1.60 |
| 03-144.1-10 | DN10 | PN100/500 | 107 | 50 | 2.51 |
| 03-144.1-12 | DN12 | PN100/500 | 129 | 55 | 4.20 |
| 03-144.1-20 | DN20 | PN100/500 | 132 | 75 | 5.82 |
| 03-144.1-25 | DN25 | PN100/500 | 162 | 81 | 8.95 |
| 03-144.1-32 | DN32 | PN100/500 | 188 | 100 | 16.61 |
| 03-144.1-40 | DN40 | PN100/500 | 224 | 116 | 20.30 |
