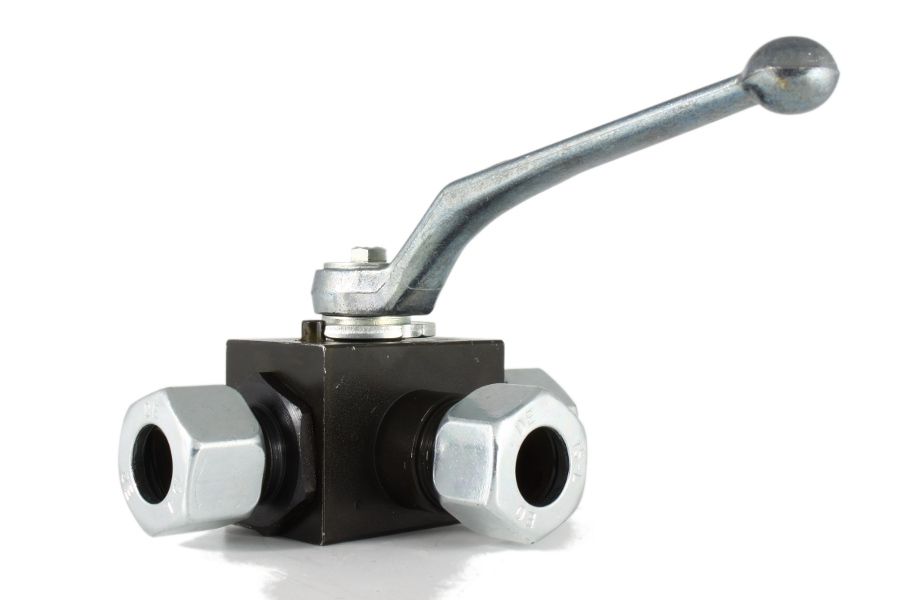

High Pressure 3-Way Ball Valve, 03-140.4
Additional information
| Connection Type | Cutting ring connections (Heavy Series) |
|---|---|
| Material Body | Steel |
| Inner Parts | Steel chrome-plated |
| Seat Sealing | POM/NBR |
| Temperature Range | -10°C to 80°C |
- Floating ball
- Negative overlap
- L-port
- Shut-off for 45° switching path not possible!
| Art. Nr. | DN | PN | L | kg |
| 03-140.4-4 | DN4 | PN400/500 | 73/88 | 0.35 |
| 03-140.4-6 | DN6 | PN400/500 | 73/90 | 0.30 |
| 03-140.4-8 | DN8 | PN400/500 | 77/94 | 0.47 |
| 03-140.4-10 | DN10 | PN400/500 | 81/100 | 0.50 |
| 03-140.4-12 | DN12 | PN400/500 | 87/106 | 0.91 |
| 03-140.4-16 | DN16 | PN400/500 | 90/112 | 0.95 |
| 03-140.4-20 | DN20 | PN400/500 | 107/131 | 1.71 |
| 03-140.4-25 | DN25 | PN400/500 | 120/146 | 2.45 |
| 03-140.4-32 | DN32 | PN400/500 | 134/- | – |
