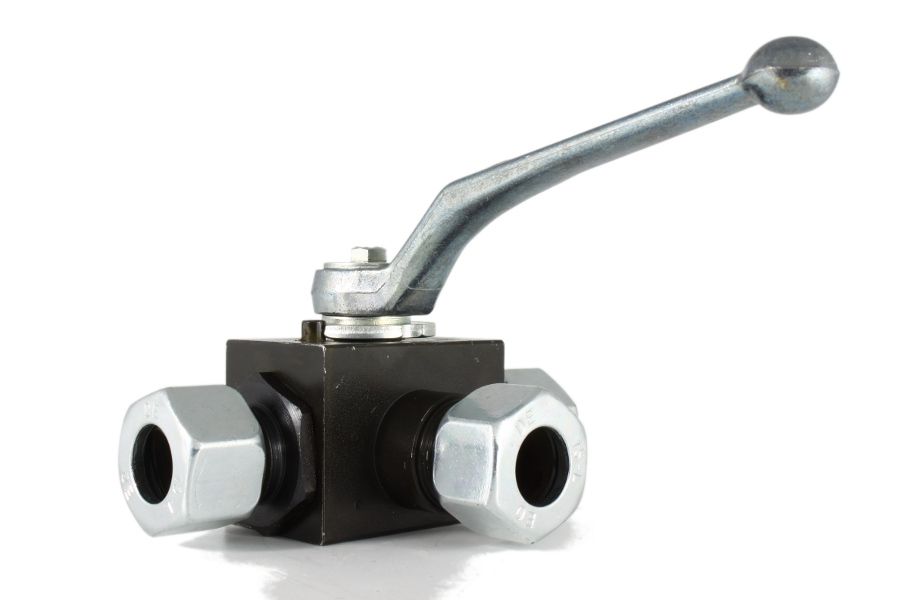

High Pressure 3-Way Ball Valve, 03-140.3
Additional information
| Connection Type | Cutting ring connections (Light Series) |
|---|---|
| Material Body | Steel |
| Inner Parts | Steel chrome-plated |
| Seat Sealing | POM/NBR |
| Temperature Range | -10°C to 80°C |
- Floating ball
- Negative overlap
- L-port
- Shut-off for 45° switching path not possible!
| Art. Nr. | DN | PN | L | kg |
| 03-140.3-4 | DN4 | PN400/500 | 67/82 | 0.32 |
| 03-140.3-6 | DN6 | PN400/500 | 67/82 | 0.21 |
| 03-140.3-8 | DN8 | PN400/500 | 75/90 | 0.45 |
| 03-140.3-10 | DN10 | PN400/500 | 75/90 | 0.54 |
| 03-140.3-12 | DN12 | PN400/500 | 83/99 | 0.68 |
| 03-140.3-16 | DN16 | PN400/500 | 82/99 | 0.85 |
| 03-140.3-20 | DN20 | PN400/500 | 99/116 | 1.34 |
| 03-140.3-25 | DN25 | PN400/500 | 108/126 | 2.27 |
| 03-140.3-32 | DN32 | PN400/500 | 116/- | – |
| 03-140.3-40 | DN40 | PN400/500 | 121/- | – |
