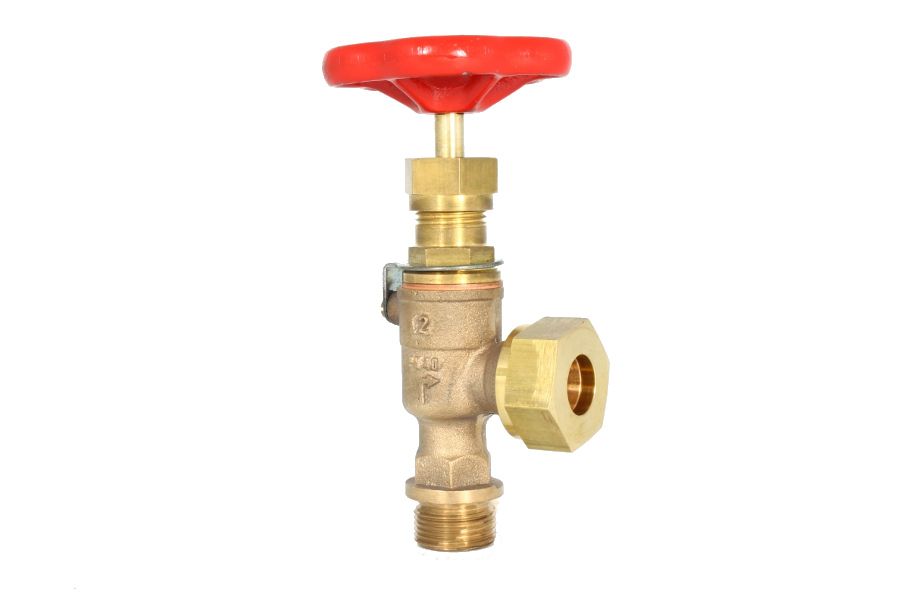

Globe Valve Screwed Ends, 01-098
Additional information
| Material Body | Gunmetal |
|---|---|
| Inner Parts | Special brass |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- Screwed secured bonnet
- Fix plug
- Inlet male thread
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-098-6 | DN6 | PN40 | 37 | 105 | 60 | 0.50 |
| 01-098-8 | DN8 | PN40 | 39 | 105 | 60 | 0.50 |
| 01-098-10 | DN10 | PN40 | 43 | 105 | 60 | 0.50 |
| 01-098-12 | DN12 | PN40 | 47 | 115 | 80 | 1.00 |
| 01-098-16 | DN16 | PN40 | 50 | 115 | 80 | 1.10 |
| 01-098-20 | DN20 | PN40 | 59 | 135 | 100 | 1.70 |
| 01-098-25 | DN25 | PN40 | 62 | 130 | 100 | 1.90 |
| 01-098-32 | DN32 | PN40 | 67 | 150 | 120 | 3.00 |
