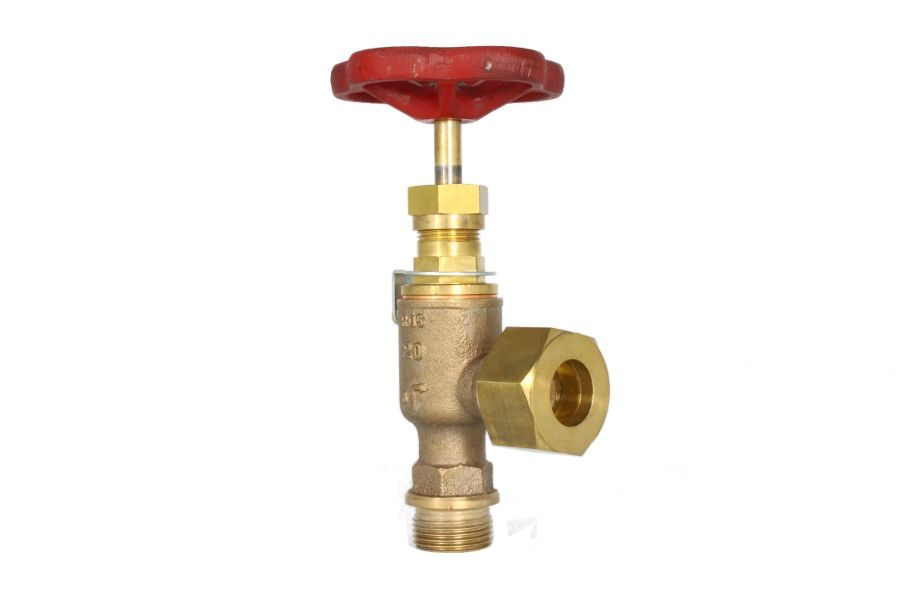

Globe Valve Screwed Ends, 01-088
Additional information
| Material Body | Gunmetal |
|---|---|
| Inner Parts | Brass |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- screwed secured bonnet
- fix plug
- inlet male thread
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-088-6 | DN6 | PN40 | 39 | 105 | 60 | 0.40 |
| 01-088-8 | DN8 | PN40 | 41 | 105 | 60 | 0.40 |
| 01-088-10 | DN10 | PN40 | 44 | 105 | 60 | 0.40 |
| 01-088-12 | DN12 | PN40 | 48 | 115 | 80 | 0.70 |
| 01-088-16 | DN16 | PN40 | 51 | 115 | 80 | 0.80 |
| 01-088-20 | DN20 | PN40 | 60 | 135 | 100 | 1.30 |
| 01-088-25 | DN25 | PN40 | 63 | 130 | 100 | 1.40 |
| 01-088-32 | DN32 | PN40 | 69 | 150 | 120 | 2.30 |
