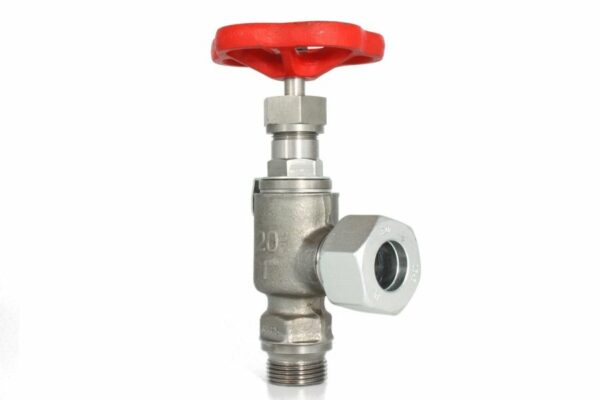

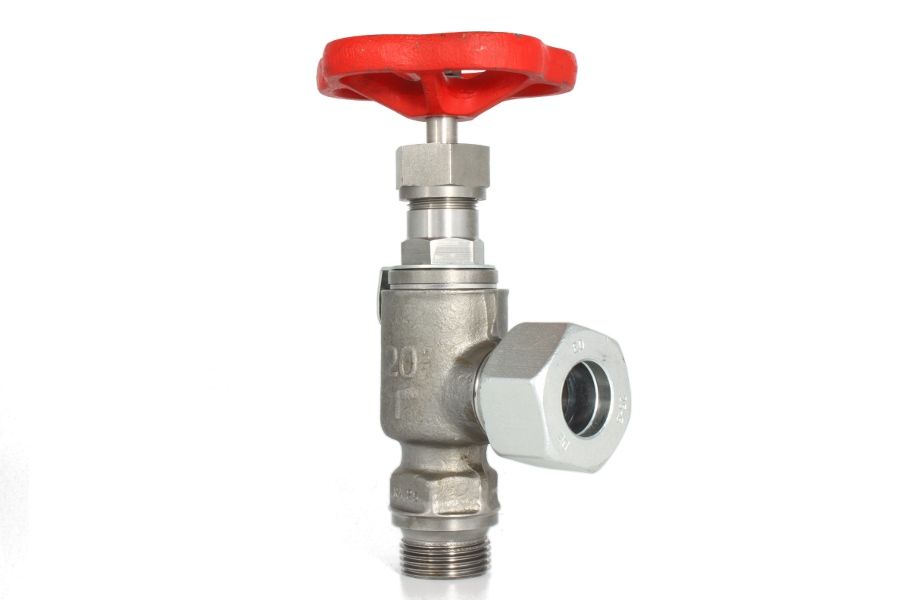

Globe Valve Screwed End , 01-140
Additional information
| Material Body | Steel |
|---|---|
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 300°C |
- Screwed secured bonnet
- Fix plug
- Inlet male thread
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-140-6 | DN6 | PN100 | 39 | 140 | 60 | 0.60 |
| 01-140-8 | DN8 | PN100 | 41 | 140 | 60 | 0.60 |
| 01-140-10 | DN10 | PN100 | 44 | 140 | 60 | 0.60 |
| 01-140-12 | DN12 | PN100 | 48 | 165 | 80 | 1.00 |
| 01-140-16 | DN16 | PN100 | 51 | 165 | 80 | 1.10 |
| 01-140-20 | DN20 | PN100 | 60 | 195 | 100 | 1.80 |
| 01-140-25 | DN25 | PN100 | 63 | 195 | 100 | 2.10 |
