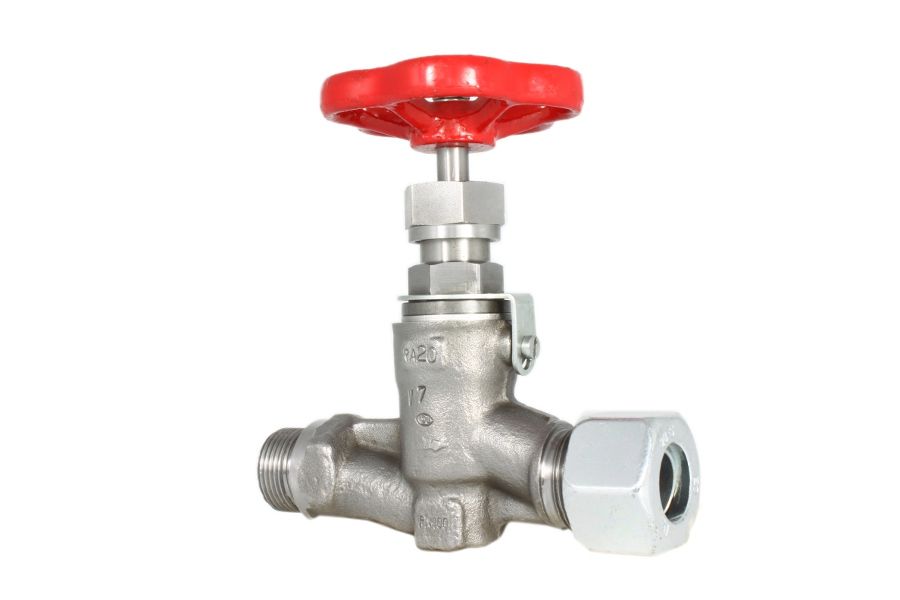

Globe Valve Screwed End , 01-136
Additional information
| Material Body | Steel |
|---|---|
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 300°C |
- Screwed secured bonnet
- Fix plug
- Inlet male thread
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-136-6 | DN6 | PN100 | 85 | 120 | 60 | 0.60 |
| 01-136-8 | DN8 | PN100 | 85 | 120 | 60 | 0.60 |
| 01-136-10 | DN10 | PN100 | 93 | 120 | 60 | 0.60 |
| 01-136-12 | DN12 | PN100 | 106 | 135 | 80 | 1.00 |
| 01-136-16 | DN16 | PN100 | 111 | 135 | 80 | 1.10 |
| 01-136-20 | DN20 | PN100 | 133 | 160 | 100 | 1.80 |
| 01-136-25 | DN25 | PN100 | 133 | 160 | 100 | 2.10 |
