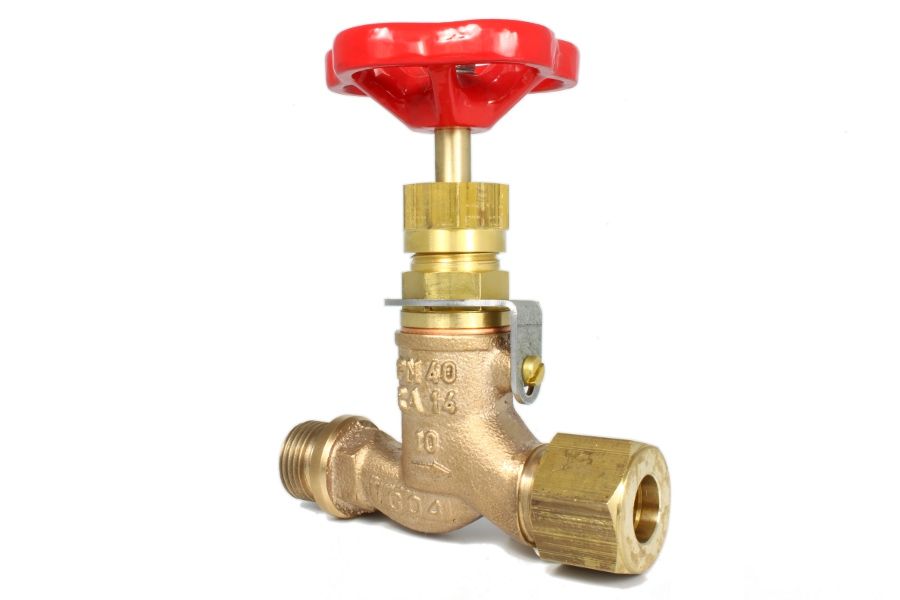

Globe Valve Screwed End , 01-080
Additional information
| Material Body | Gunmetal |
|---|---|
| Inner Parts | Brass |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- Screwed secured bonnet
- Locking plate
- Fix plug
- Inlet male thread
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-080-6 | DN6 | PN40 | 69 | 110 | 60 | 0.40 |
| 01-080-8 | DN8 | PN40 | 73 | 110 | 60 | 0.40 |
| 01-080-10 | DN10 | PN40 | 79 | 110 | 60 | 0.40 |
| 01-080-12 | DN12 | PN40 | 94 | 130 | 80 | 0.70 |
| 01-080-16 | DN16 | PN40 | 101 | 130 | 80 | 0.80 |
| 01-080-20 | DN20 | PN40 | 122 | 150 | 100 | 1.30 |
| 01-080-25 | DN25 | PN40 | 133 | 150 | 100 | 1.50 |
| 01-080-32 | DN32 | PN40 | 154 | 180 | 120 | 2.30 |
