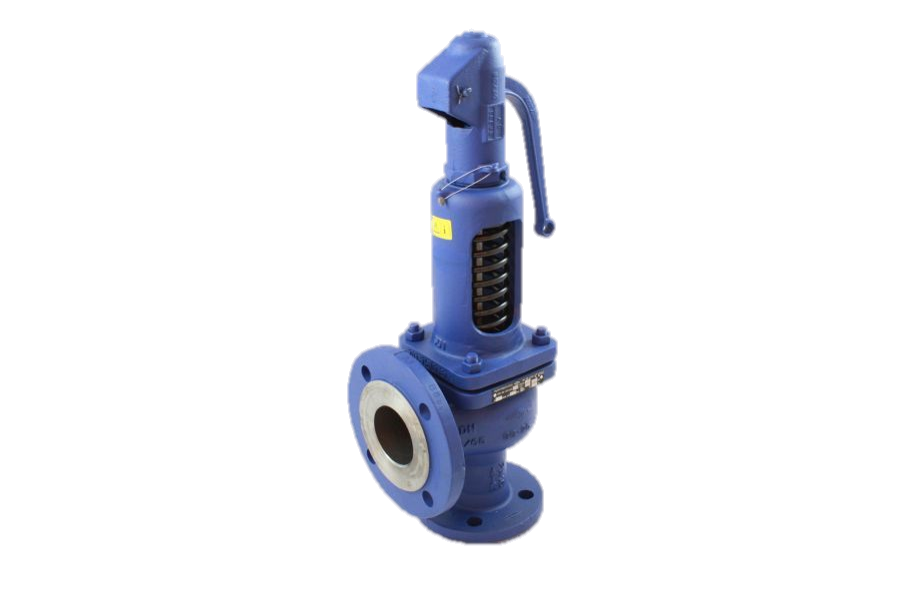

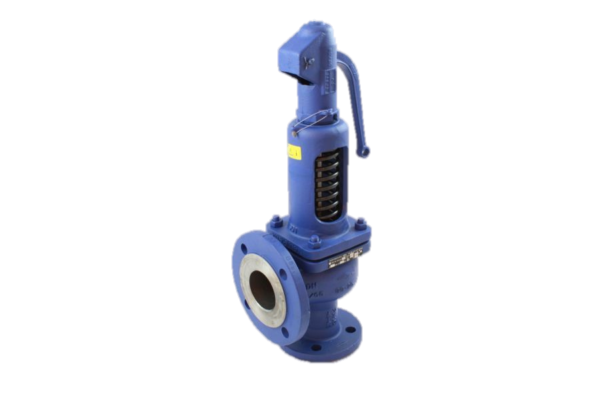

Full-Lift Safety Valve, Spring Loaded, 05-030OHOA
Additional information
| Connection Type | Flanges acc. to DIN PN16 |
|---|---|
| Material Body | Cast iron |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 300°C |
- Type approval
- Enlarged outlet
- Closed bonnet
- Lifting device
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 05-030OHOA-20/32 | G20/32 | PN16 | 85/95 | 270 | 105 | 8.50 |
| 05-030OHOA-25/40 | G25/40 | PN16 | 100/105 | 280 | 115 | 10.00 |
| 05-030OHOA-32/50 | G32/50 | PN16 | 110/115 | 330 | 140 | 14.00 |
| 05-030OHOA-40/65 | G40/65 | PN16 | 115/140 | 390 | 150 | 20.00 |
| 05-030OHOA-50/80 | G50/80 | PN16 | 120/150 | 435 | 165 | 28.00 |
| 05-030OHOA-65/100 | G65/100 | PN16 | 140/170 | 545 | 185 | 40.00 |
| 05-030OHOA-80/125 | G80/125 | PN16 | 160/195 | 610 | 200 | 53.00 |
| 05-030OHOA-100/150 | G100/150 | PN16 | 180/220 | 690 | 220 | 80.00 |
| 05-030OHOA-125/200 | G125/200 | PN16 | 200/250 | 845 | 250 | 125.00 |
| 05-030OHOA-150/250 | G150/250 | PN16 | 225/285 | 890 | 285 | 165.00 |
