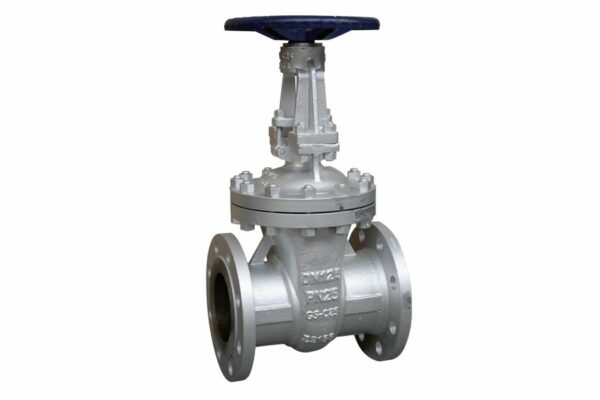

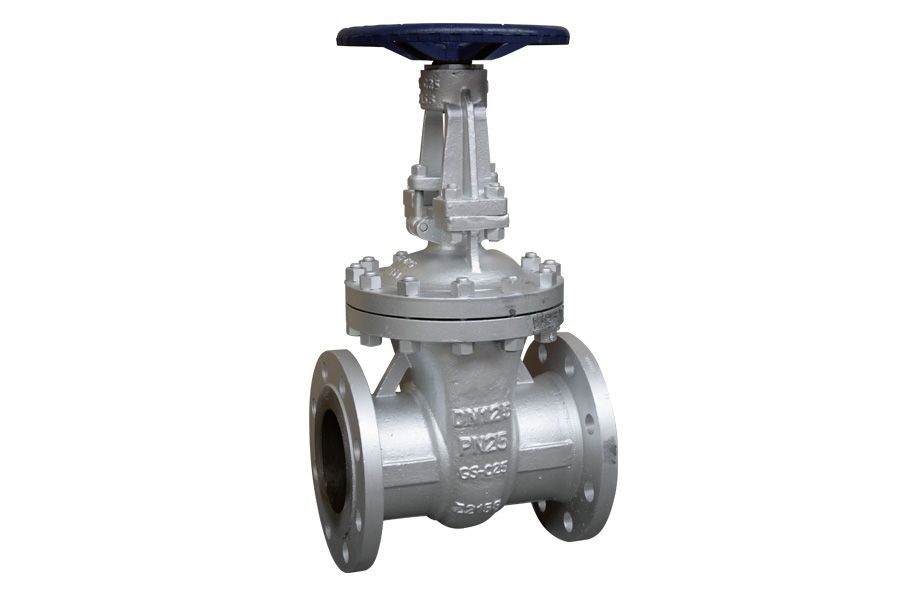

Flanged Wedge Gate Valve, 02-060
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN16 |
|---|---|
| Material Body | Cast steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Stainless steel |
| Temperature Range | -20°C to 400°C |
- Top rack
- Rising stem
| Art. Nr. | DN | PN | L | ØD | kg |
| 02-060-40 | DN40 | PN16 | 240 | 150 | 12.00 |
| 02-060-50 | DN50 | PN16 | 250 | 165 | 13.00 |
| 02-060-65 | DN65 | PN16 | 270 | 185 | 26.00 |
| 02-060-80 | DN80 | PN16 | 280 | 200 | 30.00 |
| 02-060-100 | DN100 | PN16 | 300 | 220 | 40.00 |
| 02-060-125 | DN125 | PN16 | 325 | 250 | 60.00 |
| 02-060-150 | DN150 | PN16 | 350 | 285 | 71.00 |
| 02-060-200 | DN200 | PN16 | 400 | 340 | 120.00 |
| 02-060-250 | DN250 | PN16 | 450 | 405 | 200.00 |
| 02-060-300 | DN300 | PN16 | 500 | 460 | 300.00 |
| 02-060-350 | DN350 | PN16 | 550 | 520 | 560.00 |
| 02-060-400 | DN400 | PN16 | 600 | 580 | 680.00 |
| 02-060-500 | DN500 | PN16 | 700 | 715 | 1050.00 |
| 02-060-600 | DN600 | PN16 | 800 | 840 | 1500.00 |
