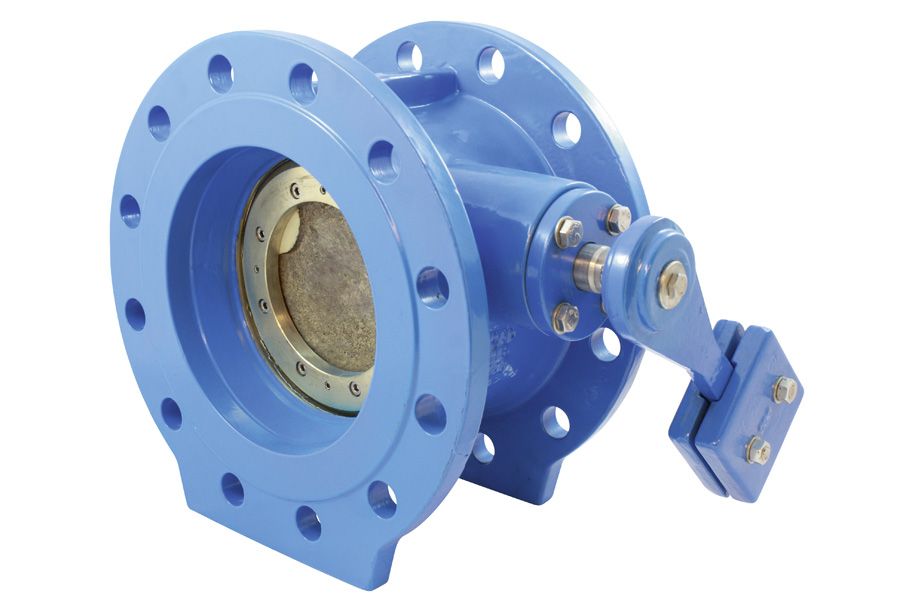

Flanged Swing Check Valve, 04-015
Additional information
| Material Body | Nodular cast iron |
|---|---|
| Inner Parts | Nodular iron |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 80°C |
| Application Range | Cold water, Neutral gases, Seawater, Warm water |
- With lever and counter weight
| Art. Nr. | DN | PN | L | ØD | kg |
| 04-015-200 | DN200 | PN10 | 230 | 340 | 54.00 |
| 04-015-250 | DN250 | PN10 | 250 | 395 | 70.00 |
| 04-015-300 | DN300 | PN10 | 270 | 445 | 95.00 |
| 04-015-350 | DN350 | PN10 | 290 | 505 | 140.00 |
| 04-015-400 | DN400 | PN10 | 310 | 565 | 190.00 |
| 04-015-500 | DN500 | PN10 | 350 | 670 | 210.00 |
