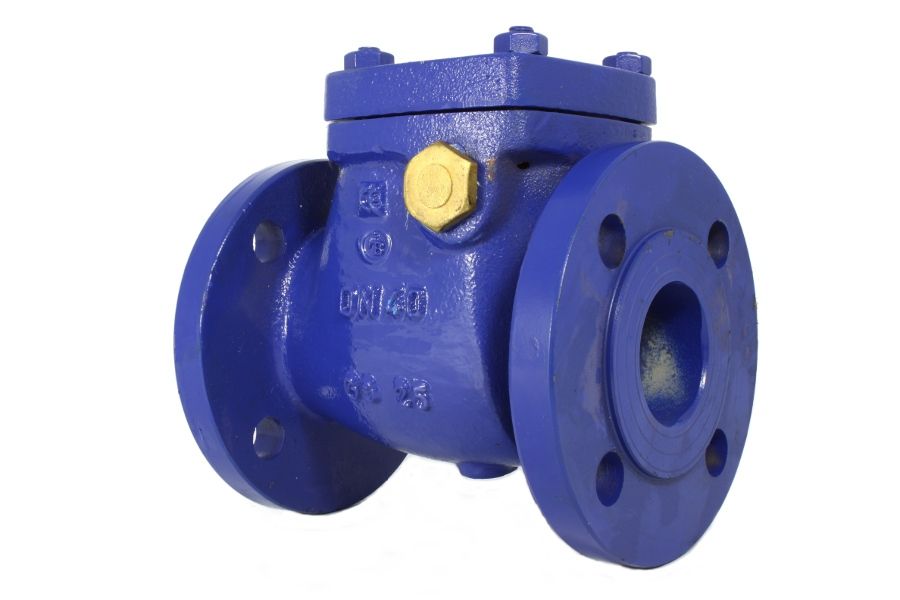

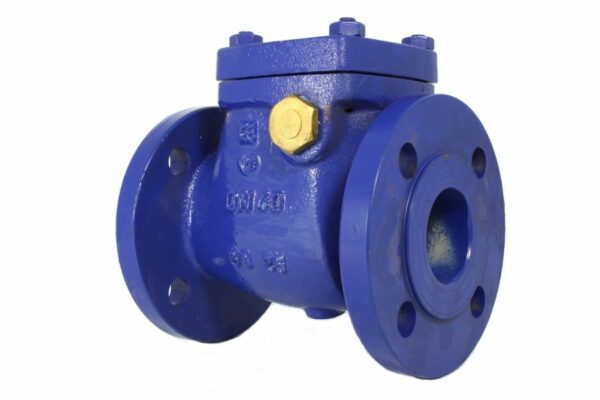

Flanged Swing Check Valve, 04-002.2
Additional information
| Connection Type | Ähnl. DIN 3232-A, Length acc. to DIN 3202-F6 |
|---|---|
| Material Body | Cast steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 120°C |
| Application Range | Cold water, Neutral gases, Seawater, Steam |
- Inside shaft
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 04-002.2-40 | DN40 | PN16 | 180 | 220 | 150 | 16.00 |
| 04-002.2-50 | DN50 | PN16 | 200 | 230 | 165 | 21.00 |
| 04-002.2-65 | DN65 | PN16 | 240 | 280 | 185 | 26.00 |
| 04-002.2-80 | DN80 | PN16 | 260 | 300 | 200 | 36.00 |
| 04-002.2-100 | DN100 | PN16 | 300 | 330 | 220 | 55.00 |
| 04-002.2-125 | DN125 | PN16 | 350 | 380 | 250 | 90.00 |
| 04-002.2-150 | DN150 | PN16 | 400 | 400 | 285 | 128.00 |
| 04-002.2-200 | DN200 | PN16 | 500 | 450 | 340 | 206.00 |
| 04-002.2-250 | DN250 | PN16 | 600 | 520 | 405 | 290.00 |
| 04-002.2-300 | DN300 | PN16 | 700 | 570 | 460 | 326.00 |
| 04-002.2-350 | DN350 | PN16 | 800 | 650 | 520 | 400.00 |
| 04-002.2-400 | DN400 | PN16 | 900 | 690 | 580 | 455.00 |
| 04-002.2-500 | DN500 | PN16 | 1100 | 800 | 715 | – |
