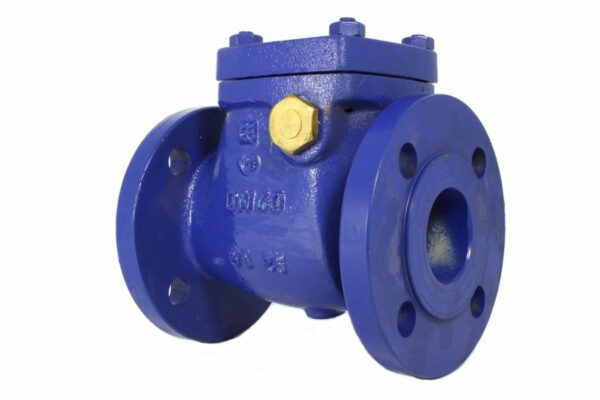

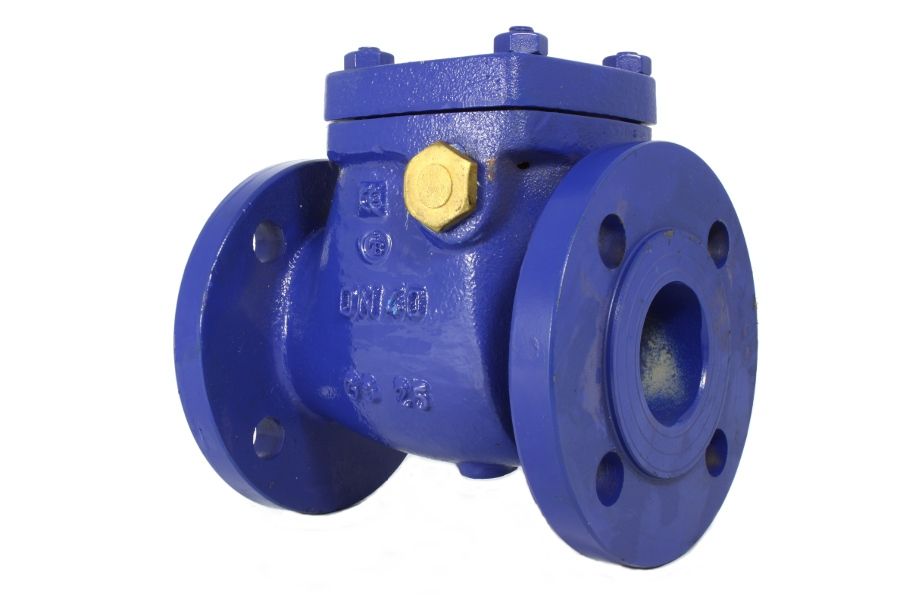

Flanged Swing Check Valve, 04-002.1
Additional information
| Connection Type | Ähnl. DIN 3232-A, Length acc. to DIN 3202-F6 |
|---|---|
| Material Body | Cast iron |
| Inner Parts | Gunmetal |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 120°C |
| Application Range | Cold water, Seawater, Warm water |
- Inside shaft
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 04-002.1-40 | DN40 | PN16 | 180 | 95 | 150 | 9.00 |
| 04-002.1-50 | DN50 | PN16 | 200 | 100 | 165 | 12.00 |
| 04-002.1-65 | DN65 | PN16 | 240 | 115 | 185 | 19.00 |
| 04-002.1-80 | DN80 | PN16 | 260 | 135 | 200 | 20.00 |
| 04-002.1-100 | DN100 | PN16 | 300 | 145 | 220 | 23.00 |
| 04-002.1-125 | DN125 | PN16 | 350 | 160 | 250 | 36.00 |
| 04-002.1-150 | DN150 | PN16 | 400 | 180 | 285 | 47.00 |
| 04-002.1-200 | DN200 | PN16 | 500 | 270 | 340 | 135.00 |
| 04-002.1-250 | DN250 | PN16 | 600 | 320 | 395 | 165.00 |
| 04-002.1-300 | DN300 | PN16 | 700 | 350 | 445 | 287.00 |
| 04-002.1-350 | DN350 | PN16 | 800 | 435 | 505 | 393.00 |
| 04-002.1-400 | DN400 | PN16 | 900 | 475 | 565 | 500.00 |
| 04-002.1-500 | DN500 | PN16 | 1100 | 570 | 670 | 800.00 |
