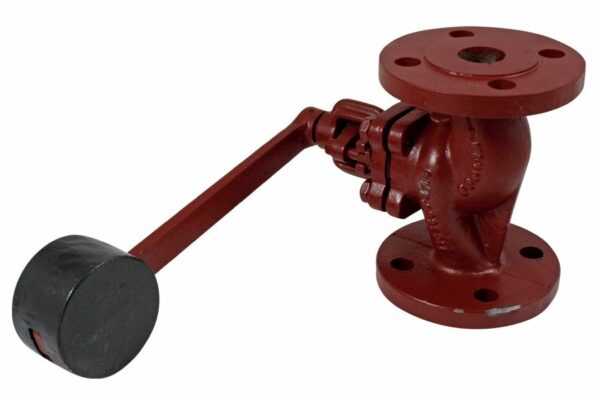

Flanged Self Closing Valve , 01-760HG
Additional information
| Connection Type | Flanges acc. to DIN PN16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 140°C |
- Weight loaded
- opening with a 120° turn
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-760HG-15 | DN15 | PN16 | 130 | 195 | 95 | 4.10 |
| 01-760HG-20 | DN20 | PN16 | 150 | 195 | 105 | 4.80 |
| 01-760HG-25 | DN25 | PN16 | 160 | 195 | 115 | 5.60 |
| 01-760HG-32 | DN32 | PN16 | 180 | 200 | 140 | 7.30 |
| 01-760HG-40 | DN40 | PN16 | 200 | 210 | 150 | 9.80 |
| 01-760HG-50 | DN50 | PN16 | 230 | 230 | 165 | 12.70 |
