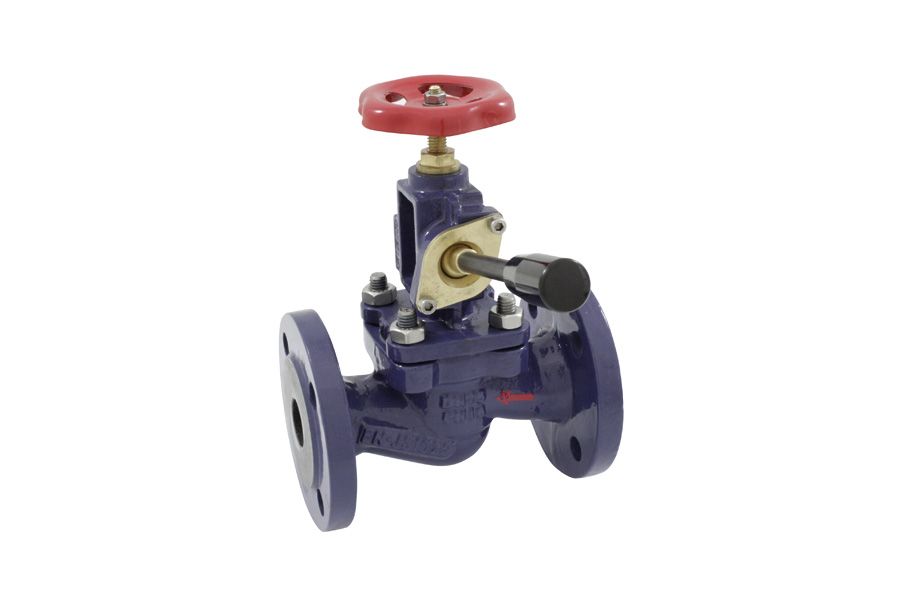

Flanged Self Closing Valve , 01-760-G
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 90°C |
- Spring loaded
- Hand lever and hand-wheel for
- Additional shut-off
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-760-G-15 | DN15 | PN16 | 130 | 160 | 95 | 3.90 |
| 01-760-G-20 | DN20 | PN16 | 150 | 160 | 105 | 4.60 |
| 01-760-G-25 | DN25 | PN16 | 160 | 170 | 115 | 5.40 |
| 01-760-G-32 | DN32 | PN16 | 180 | 180 | 140 | 7.10 |
| 01-760-G-40 | DN40 | PN16 | 200 | 190 | 150 | 9.60 |
| 01-760-G-50 | DN50 | PN16 | 230 | 200 | 165 | 12.50 |
| 01-760-G-65 | DN65 | PN16 | 290 | 220 | 185 | 17.60 |
| 01-760-G-80 | DN80 | PN16 | 310 | 250 | 200 | 22.10 |
| 01-760-G-100 | DN100 | PN16 | 350 | 320 | 220 | 27.60 |
