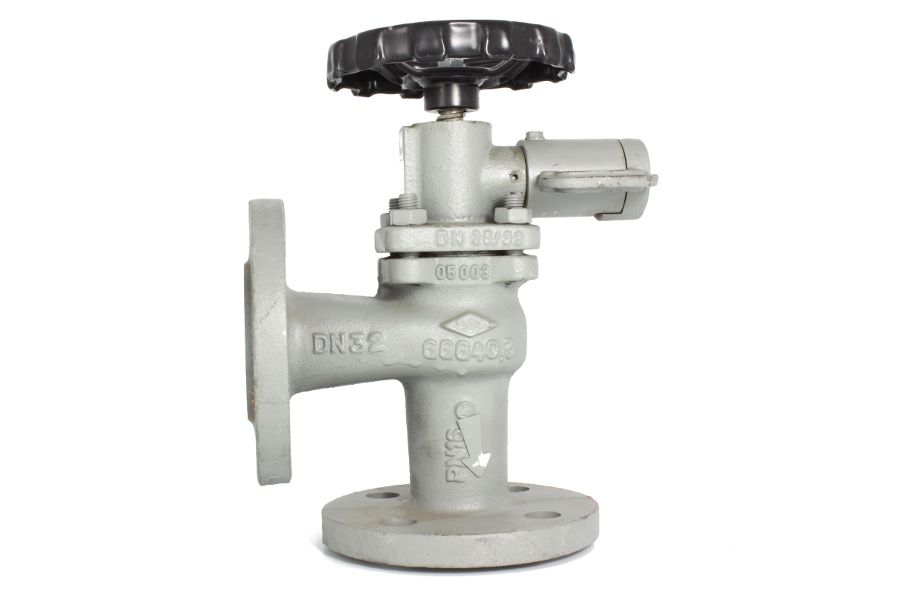

Flanged Quick Closing Valve, 01-755-G
Additional information
| Connection Type | Flanges acc. to DIN PN16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 140°C |
- Release cylinder for pneumatic-, hydraulic- and wire-rope operation.
- Handwheel for additional shut-off
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-755-G-15 | DN15 | PN16 | 90 | 150 | 95 | 3.50 |
| 01-755-G-20 | DN20 | PN16 | 95 | 155 | 105 | 4.00 |
| 01-755-G-25 | DN25 | PN16 | 100 | 155 | 115 | 5.00 |
| 01-755-G-32 | DN32 | PN16 | 105 | 155 | 140 | 6.00 |
| 01-755-G-40 | DN40 | PN16 | 115 | 185 | 150 | 8.60 |
| 01-755-G-50 | DN50 | PN16 | 125 | 190 | 165 | 11.50 |
| 01-755-G-65 | DN65 | PN16 | 145 | 220 | 185 | 16.60 |
| 01-755-G-80 | DN80 | PN16 | 155 | 235 | 200 | 20.00 |
| 01-755-G-100 | DN100 | PN16 | 175 | 270 | 220 | 34.00 |
| 01-755-G-125 | DN125 | PN16 | 200 | 300 | 250 | 46.00 |
| 01-755-G-150 | DN150 | PN16 | 225 | 355 | 285 | 70.00 |
| 01-755-G-200 | DN200 | PN10 | 275 | 400 | 340 | 120.00 |
