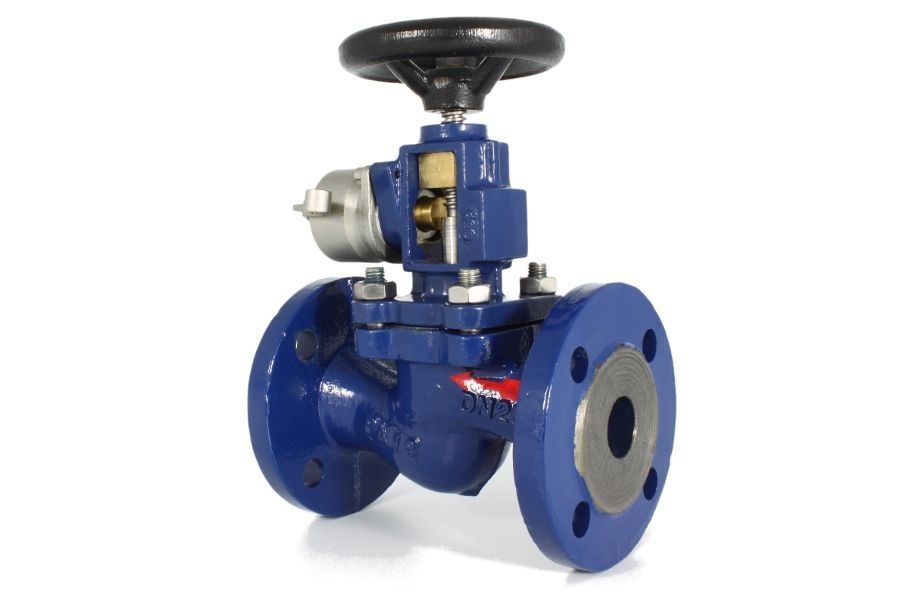

Flanged Quick Closing Valve, 01-754-G
Additional information
| Connection Type | Flanges acc. to DIN PN16 |
|---|---|
| Material Body | Cast steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 140°C |
- Release cylinder for pneumatic-, hydraulic- and wire-rope operation.
- Handwheel for additional shut-off
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-754-G-15 | DN15 | PN16 | 130 | 165 | 95 | 3.90 |
| 01-754-G-20 | DN20 | PN16 | 150 | 165 | 105 | 4.60 |
| 01-754-G-25 | DN25 | PN16 | 160 | 170 | 115 | 5.40 |
| 01-754-G-32 | DN32 | PN16 | 180 | 175 | 140 | 7.10 |
| 01-754-G-40 | DN40 | PN16 | 200 | 200 | 150 | 9.60 |
| 01-754-G-50 | DN50 | PN16 | 230 | 205 | 165 | 12.50 |
| 01-754-G-65 | DN65 | PN16 | 290 | 240 | 185 | 17.60 |
| 01-754-G-80 | DN80 | PN16 | 310 | 255 | 200 | 21.40 |
| 01-754-G-100 | DN100 | PN16 | 350 | 325 | 220 | 35.70 |
| 01-754-G-125 | DN125 | PN16 | 400 | 350 | 250 | 48.20 |
| 01-754-G-150 | DN150 | PN16 | 480 | 395 | 285 | 72.00 |
| 01-754-G-200 | DN200 | PN10 | 600 | 510 | 340 | 108.00 |
