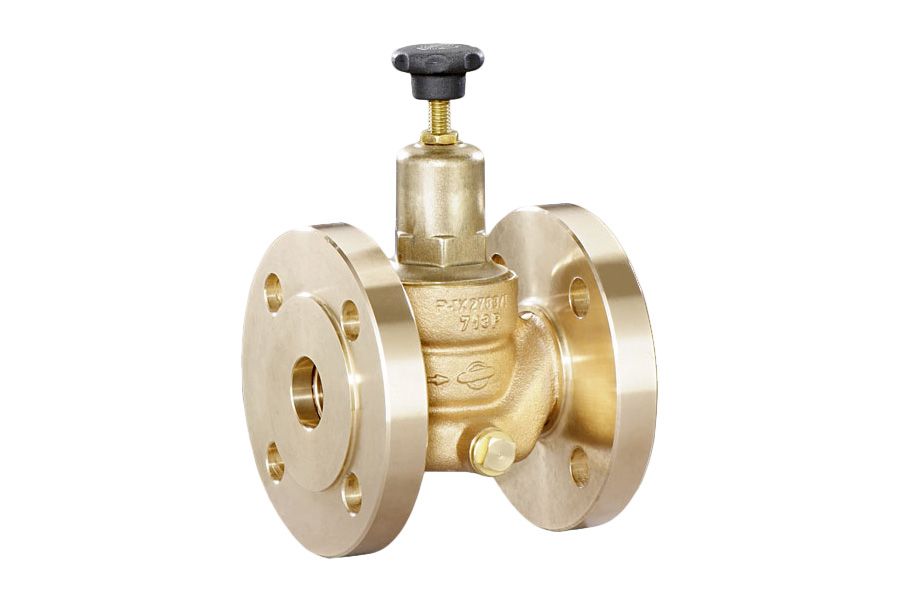

Flanged Pressure Reducing Valve for Liquids, 05-050-DRV413
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN25 |
|---|---|
| Material Body | Brass |
| Inner Parts | Plastic, Stainless steel |
| Seat Sealing | NBR |
| Temperature Range | 0°C to 75°C |
- Balanced single seat diaphragm valve
- Strainer
- Inlet press. max 16 bar, outlet pressure 0,5-4 bar
| Art. Nr. | DN | PN | L | kg |
| 05-050-DRV413-15 | DN15 | PN16 | 100 | 2.00 |
| 05-050-DRV413-20 | DN20 | PN16 | 105 | 2.80 |
| 05-050-DRV413-25 | DN25 | PN16 | 110 | 3.40 |
| 05-050-DRV413-32 | DN32 | PN16 | 122 | 4.70 |
| 05-050-DRV413-40 | DN40 | PN16 | 158 | 7.90 |
| 05-050-DRV413-50 | DN50 | PN16 | 215 | 9.15 |
| 05-050-DRV413-65 | DN65 | PN16 | 290 | 13.80 |
| 05-050-DRV413-80 | DN80 | PN16 | 310 | 36.00 |
| 05-050-DRV413-100 | DN100 | PN16 | 350 | 37.00 |
| 05-050-DRV413-125 | DN125 | PN16 | 400 | 77.00 |
