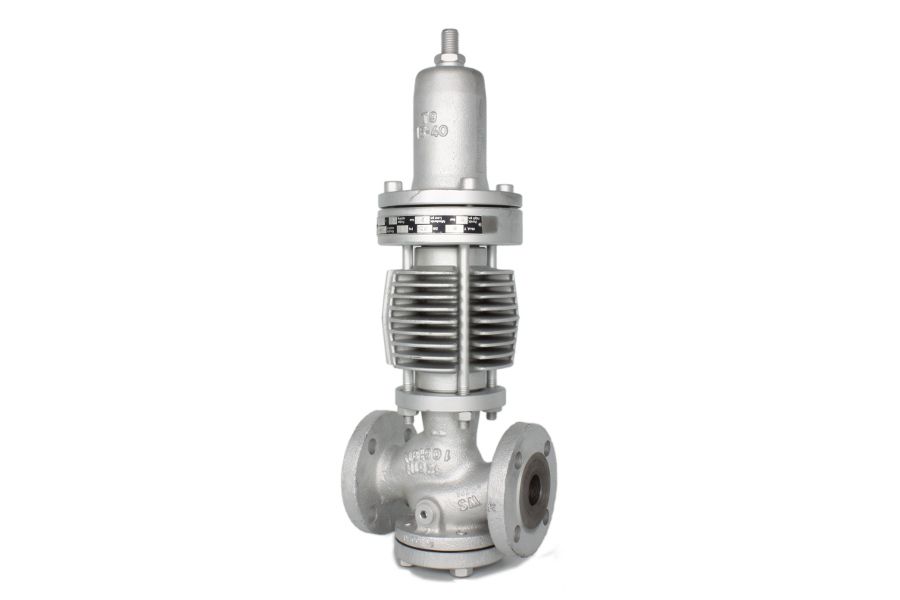

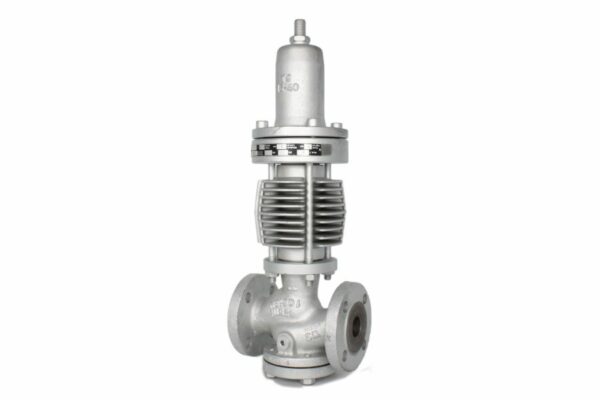

Flanged Pressure Reducing Valve, 05-061
Additional information
| Connection Type | Flanges acc. to DIN PN40 |
|---|---|
| Material Body | Cast steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 300°C |
- For steam, counterpressure independent
- Max. reduction proportion 10:1
- Inlet pressure max 40 bar
- Outlet pressure 1 bar
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 05-061-15 | DN15 | PN40 | 130 | 435 | 95 | 12.00 |
| 05-061-20 | DN20 | PN40 | 150 | 435 | 105 | 12.00 |
| 05-061-25 | DN25 | PN40 | 160 | 435 | 115 | 13.00 |
| 05-061-32 | DN32 | PN40 | 180 | 455 | 140 | 16.00 |
| 05-061-40 | DN40 | PN40 | 200 | 455 | 150 | 18.00 |
| 05-061-50 | DN50 | PN40 | 230 | 605 | 165 | 37.50 |
| 05-061-65 | DN65 | PN40 | 290 | 635 | 185 | 43.00 |
| 05-061-80 | DN80 | PN40 | 310 | 800 | 200 | 58.00 |
| 05-061-100 | DN100 | PN40 | 350 | 825 | 235 | 77.00 |
