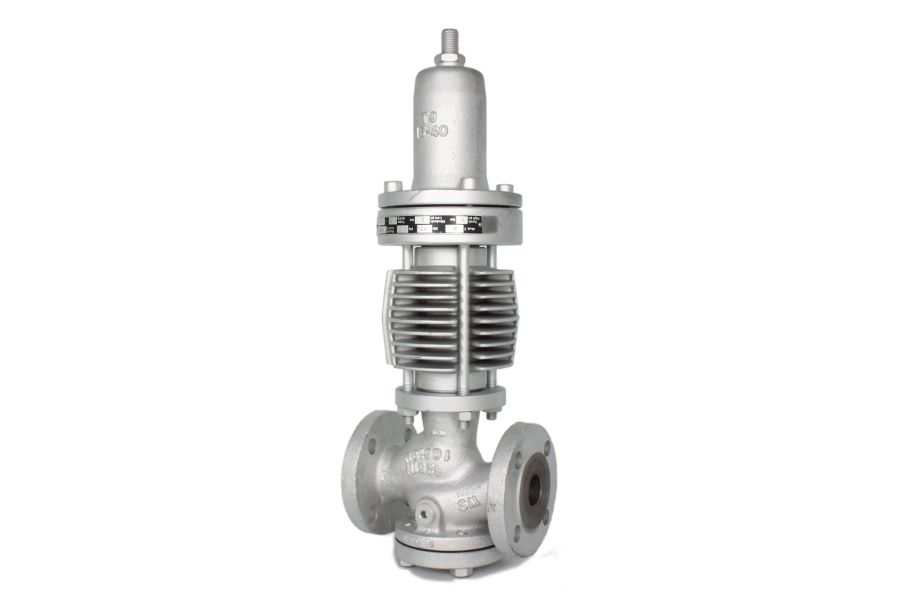

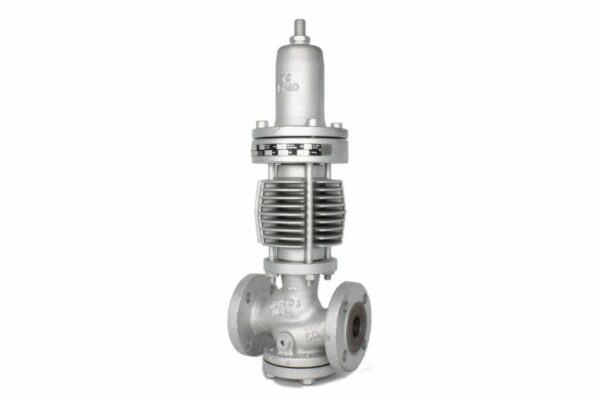

Flanged Pressure Reducing Valve, 05-060
Additional information
| Connection Type | Flanges acc. to DIN PN16 |
|---|---|
| Material Body | Cast iron |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 250°C |
- For steam, counterpressure independent
- Max. reduction proportion 10:1
- Inlet pressure max 16 bar
- Outlet pressure 1 bar
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 05-060-15 | DN15 | PN16 | 130 | 435 | 95 | 11.40 |
| 05-060-20 | DN20 | PN16 | 150 | 435 | 105 | 11.40 |
| 05-060-25 | DN25 | PN16 | 160 | 435 | 115 | 12.50 |
| 05-060-32 | DN32 | PN16 | 180 | 455 | 140 | 14.50 |
| 05-060-40 | DN40 | PN16 | 200 | 455 | 150 | 16.00 |
| 05-060-50 | DN50 | PN16 | 230 | 605 | 165 | 35.00 |
| 05-060-65 | DN65 | PN16 | 290 | 635 | 185 | 39.50 |
| 05-060-80 | DN80 | PN16 | 310 | 800 | 200 | 52.50 |
| 05-060-100 | DN100 | PN16 | 350 | 825 | 220 | 68.00 |
