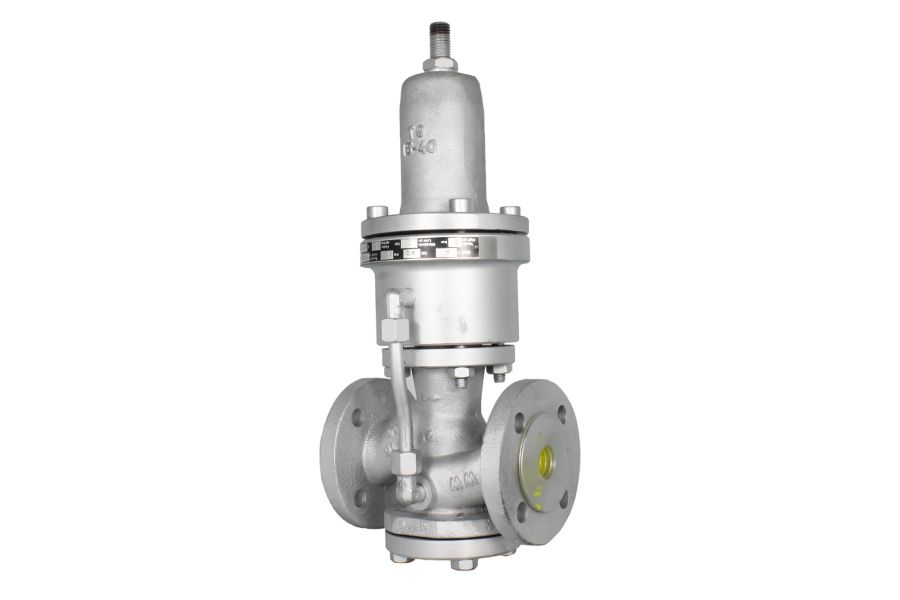

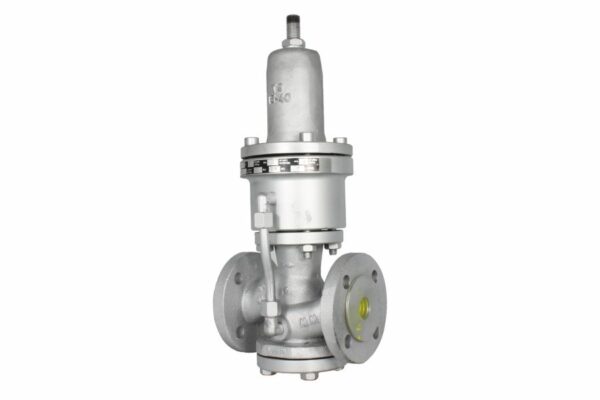

Flanged Pressure Reducing Valve, 05-056
Additional information
| Connection Type | Flanges acc. to DIN PN40 |
|---|---|
| Material Body | Cast steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
- Counterpressure independent
- Max. reduction proportion 25:1
- Inlet pressure max 40 bar
- Outlet pressure 0,5 – 10 bar
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 05-056-15 | DN15 | PN40 | 130 | 310 | 95 | 12.50 |
| 05-056-20 | DN20 | PN40 | 150 | 310 | 105 | 12.50 |
| 05-056-25 | DN25 | PN40 | 160 | 310 | 115 | 13.50 |
| 05-056-32 | DN32 | PN40 | 180 | 330 | 140 | 16.00 |
| 05-056-40 | DN40 | PN40 | 200 | 330 | 150 | 18.50 |
| 05-056-50 | DN50 | PN40 | 230 | 435 | 165 | 32.50 |
| 05-056-65 | DN65 | PN40 | 290 | 465 | 185 | 40.00 |
| 05-056-80 | DN80 | PN40 | 310 | 630 | 200 | 66.00 |
| 05-056-100 | DN100 | PN40 | 350 | 655 | 235 | 78.00 |
