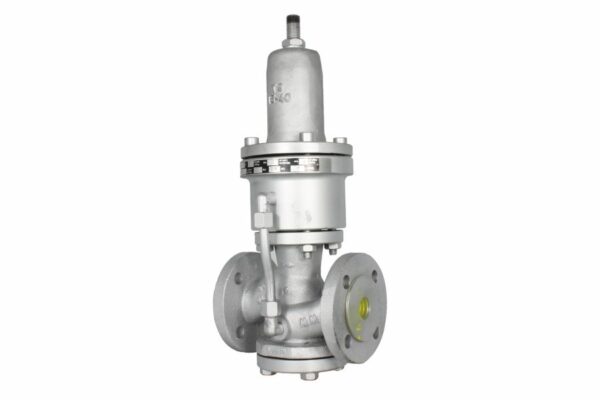

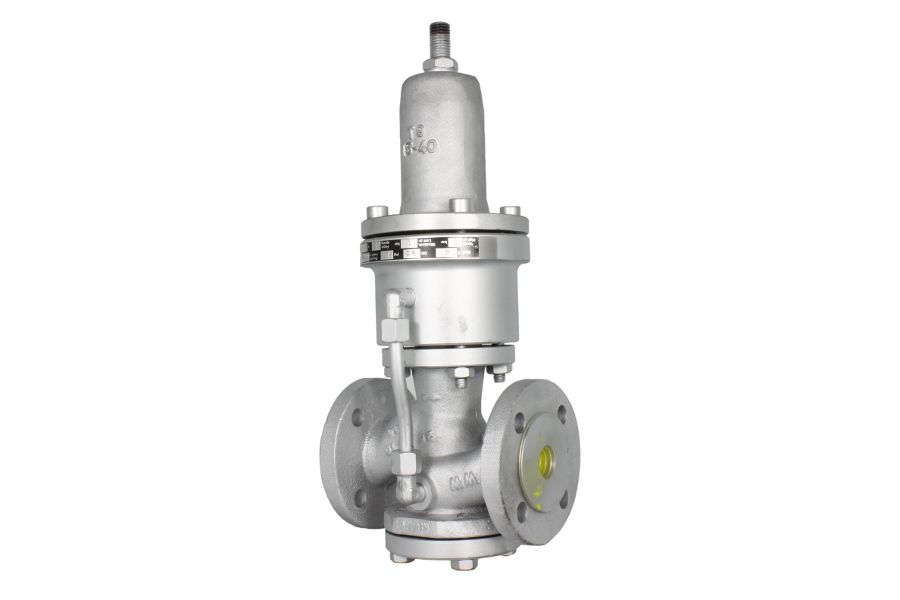

Flanged Pressure Reducing Valve, 05-055
Additional information
| Connection Type | Flanges acc. to DIN PN16 |
|---|---|
| Material Body | Cast iron |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 250°C |
- Counterpressure independent
- Max. reduction proportion 25:1
- Inlet pressure max 16 bar
- Outlet pressure 0,5 – 10 bar
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 05-055-15 | DN15 | PN16 | 130 | 310 | 95 | 10.50 |
| 05-055-20 | DN20 | PN16 | 150 | 310 | 105 | 10.50 |
| 05-055-25 | DN25 | PN16 | 160 | 310 | 115 | 12.00 |
| 05-055-32 | DN32 | PN16 | 180 | 330 | 140 | 14.50 |
| 05-055-40 | DN40 | PN16 | 200 | 330 | 150 | 15.50 |
| 05-055-50 | DN50 | PN16 | 230 | 435 | 165 | 28.50 |
| 05-055-65 | DN65 | PN16 | 290 | 465 | 185 | 37.00 |
| 05-055-80 | DN80 | PN16 | 310 | 630 | 200 | 56.50 |
| 05-055-100 | DN100 | PN16 | 350 | 655 | 220 | 69.00 |
| 05-055-125 | DN125 | PN16 | 400 | 660 | 250 | 133.00 |
