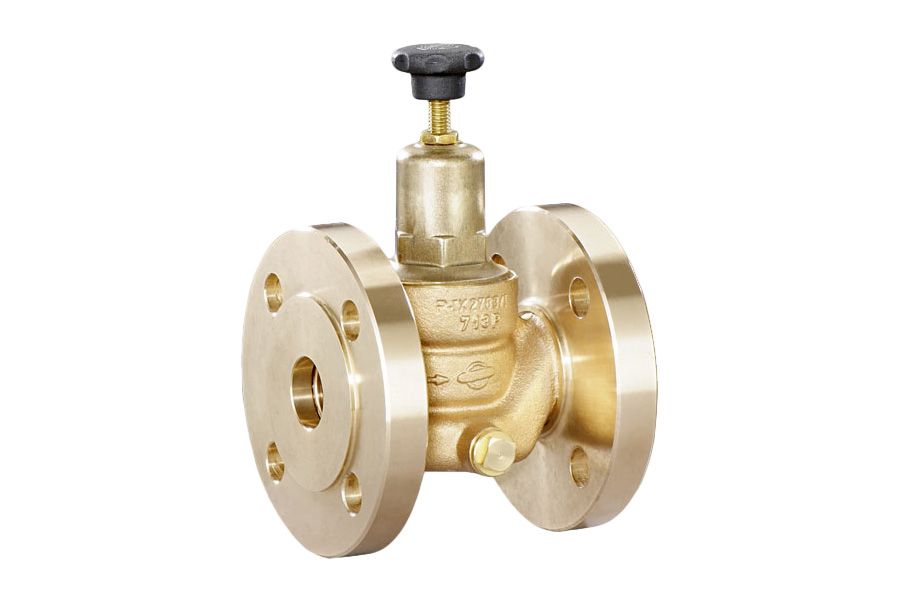

Flanged Pressure Reducing Valve, 05-050-DRV672
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN25 |
|---|---|
| Material Body | Cast iron, Gunmetal |
| Inner Parts | Brass |
| Seat Sealing | NBR |
| Temperature Range | 0°C to 75°C |
- balanced single seat diaphragm valve
- for neutral gases and liquids
- internal parts interchangeable
- both sides pressure gauge connection G 1/2
- inl. press. max. 16 bar
- outlet pressure 0,5-4 bar
| Art. Nr. | DN | PN | kg |
| 05-050-DRV672-80 | DN80 | PN16 | 36.45 |
| 05-050-DRV672-100 | DN100 | PN16 | 37.32 |
| 05-050-DRV672-125 | DN125 | PN16 | 80.00 |
