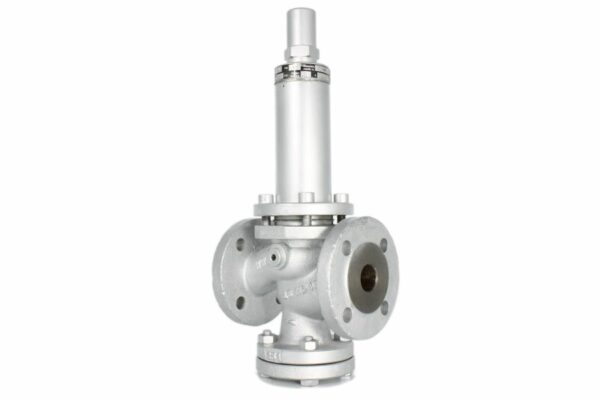

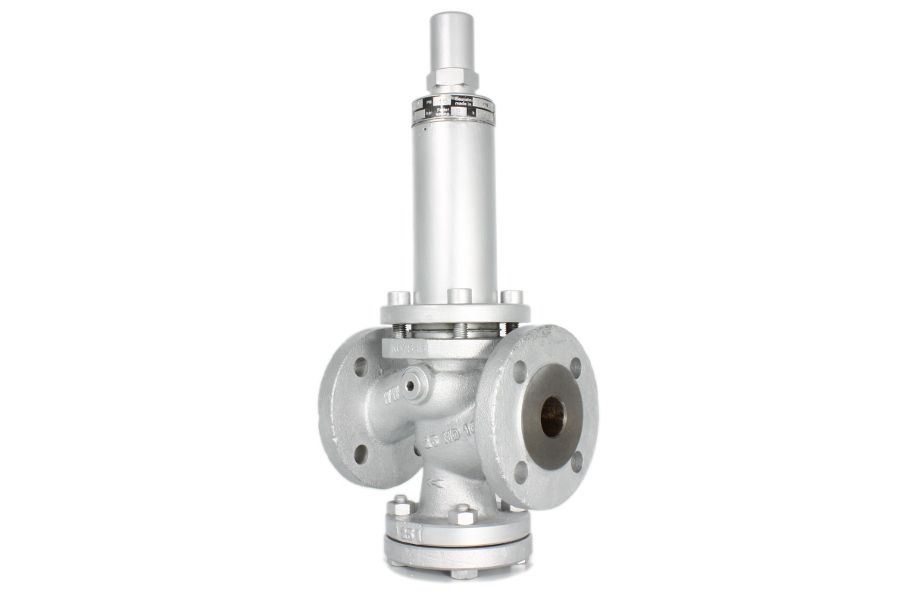

Flanged Overflow Valve, 05-041
Additional information
| Connection Type | Flanges acc. to DIN PN40 |
|---|---|
| Material Body | Cast steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 400°C |
- (Pressure retaining valve)
- Counterpressure independent
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 05-041-15 | DN15 | PN40 | 130 | 275 | 95 | 8.50 |
| 05-041-20 | DN20 | PN40 | 150 | 275 | 105 | 8.50 |
| 05-041-25 | DN25 | PN40 | 160 | 275 | 115 | 10.00 |
| 05-041-32 | DN32 | PN40 | 180 | 275 | 140 | 12.00 |
| 05-041-40 | DN40 | PN40 | 200 | 275 | 150 | 14.00 |
| 05-041-50 | DN50 | PN40 | 230 | 360 | 165 | 24.00 |
| 05-041-65 | DN65 | PN40 | 290 | 360 | 185 | 33.00 |
| 05-041-80 | DN80 | PN40 | 310 | 495 | 200 | 50.00 |
| 05-041-100 | DN100 | PN40 | 350 | 495 | 235 | 72.00 |
| 05-041-125 | DN125 | PN40 | 400 | 660 | 270 | – |
| 05-041-150 | DN150 | PN40 | 480 | 680 | 300 | – |
