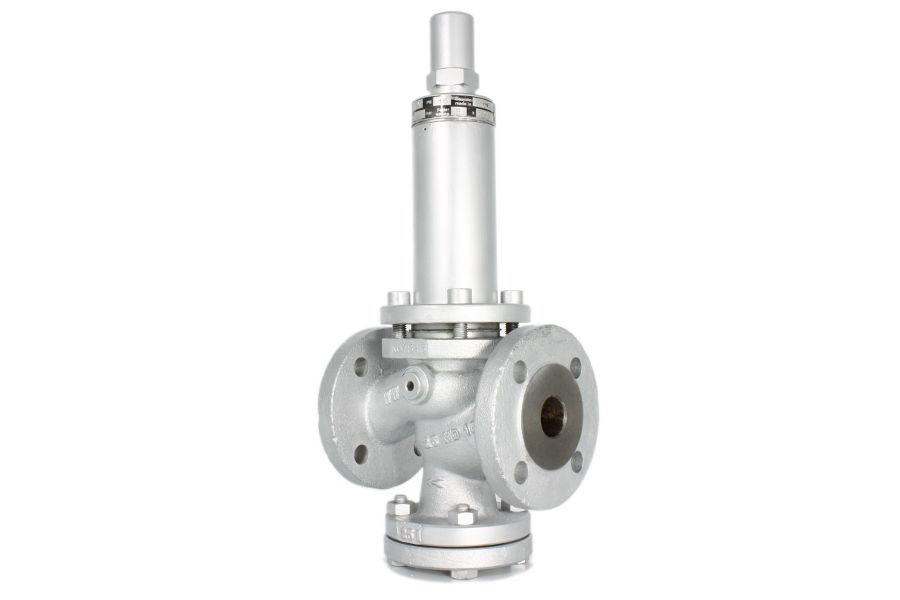

Flanged Overflow Valve, 05-040
Additional information
| Connection Type | Flanges acc. to DIN PN16 |
|---|---|
| Material Body | Cast iron |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 300°C |
- (Pressure retaining valve)
- Counterpressure independent
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 05-040-15 | DN15 | PN16 | 130 | 275 | 95 | 8.00 |
| 05-040-20 | DN20 | PN16 | 150 | 275 | 105 | 8.00 |
| 05-040-25 | DN25 | PN16 | 160 | 275 | 115 | 9.00 |
| 05-040-32 | DN32 | PN16 | 180 | 275 | 140 | 11.00 |
| 05-040-40 | DN40 | PN16 | 200 | 275 | 150 | 13.00 |
| 05-040-50 | DN50 | PN16 | 230 | 360 | 165 | 23.00 |
| 05-040-65 | DN65 | PN16 | 290 | 360 | 185 | 31.00 |
| 05-040-80 | DN80 | PN16 | 310 | 495 | 200 | 48.00 |
| 05-040-100 | DN100 | PN16 | 350 | 495 | 220 | 69.00 |
| 05-040-125 | DN125 | PN16 | 400 | 660 | 250 | – |
| 05-040-150 | DN150 | PN16 | 480 | 680 | 285 | – |
