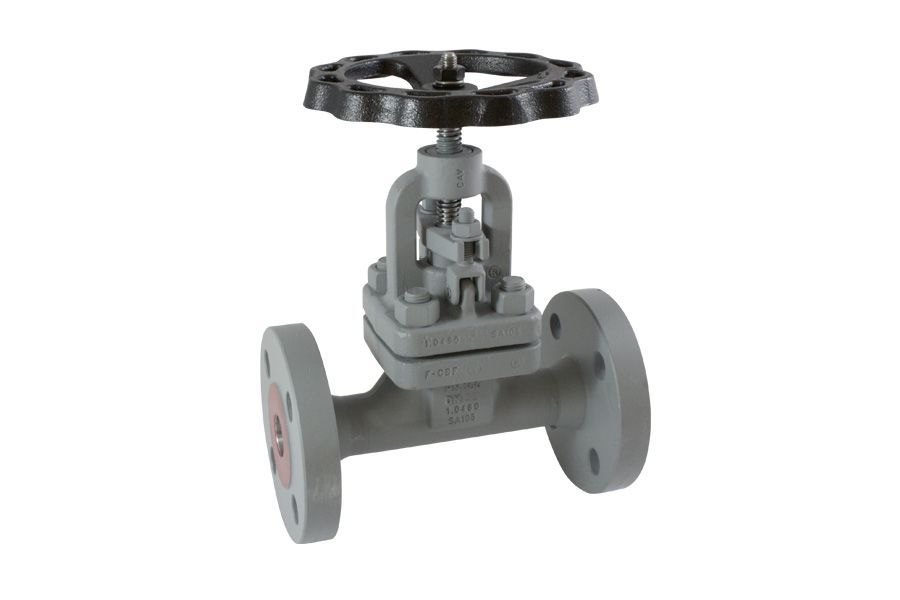

Flanged Globe Valve, 01-430PN63
Additional information
| Connection Type | Flanges acc. to DIN PN63 |
|---|---|
| Material Body | Forged steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -20°C to 450°C |
- Bolted bonnet
- Gland seal
- Rising stem
- Fix plug
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-430PN63-15 | DN15 | PN63 | 210 | 228 | 105 | 8.90 |
| 01-430PN63-20 | DN20 | PN63 | 230 | 228 | 130 | 10.50 |
| 01-430PN63-25 | DN25 | PN63 | 230 | 228 | 140 | 11.50 |
| 01-430PN63-32 | DN32 | PN63 | 260 | 292 | 155 | 19.00 |
| 01-430PN63-40 | DN40 | PN63 | 260 | 292 | 170 | 21.00 |
| 01-430PN63-50 | DN50 | PN63 | 300 | 300 | 180 | 27.00 |
