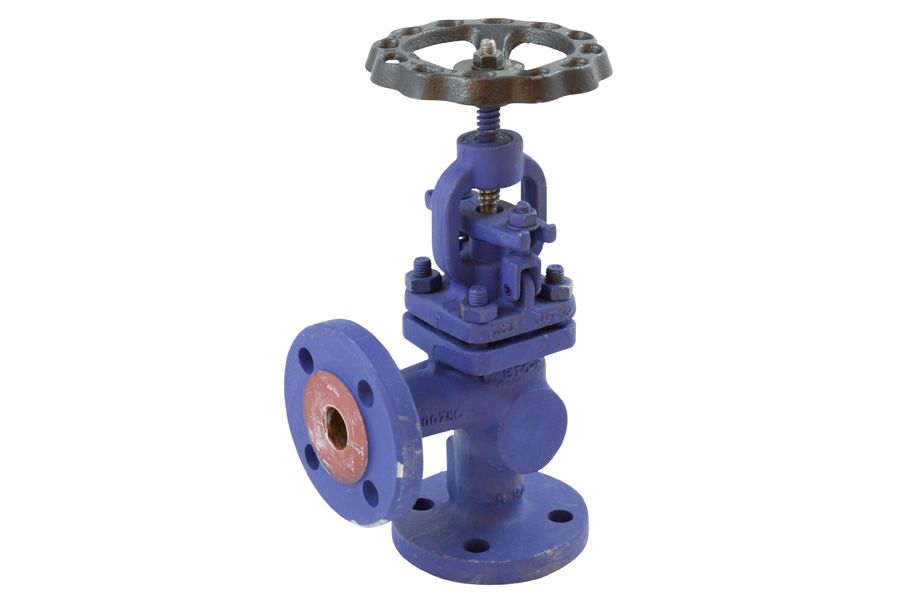

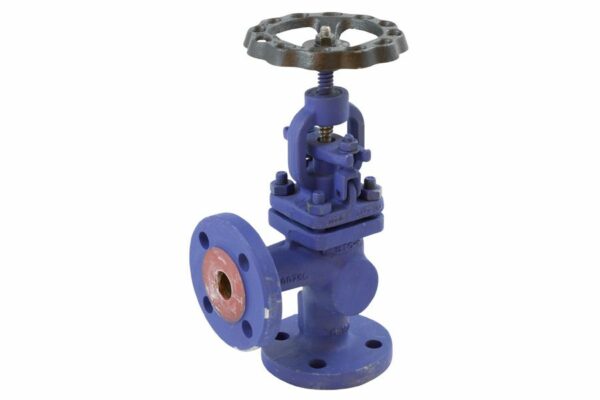

Flanged Globe Valve, 01-421
Additional information
| Connection Type | Flanges acc. to DIN PN40 |
|---|---|
| Material Body | Cast steel |
| Inner Parts | Gunmetal |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- Bolted bonnet
- Gland seal
- Rising stem
- Fix plug
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-421-15 | DN15 | PN40 | 90 | 159 | 95 | 4.80 |
| 01-421-20 | DN20 | PN40 | 95 | 159 | 105 | 5.40 |
| 01-421-25 | DN25 | PN40 | 100 | 178 | 115 | 7.10 |
| 01-421-32 | DN32 | PN40 | 105 | 178 | 140 | 8.00 |
| 01-421-40 | DN40 | PN40 | 115 | 221 | 150 | 11.50 |
| 01-421-50 | DN50 | PN40 | 125 | 229 | 165 | 13.50 |
| 01-421-65 | DN65 | PN40 | 145 | 253 | 185 | 23.50 |
| 01-421-80 | DN80 | PN40 | 155 | 297 | 200 | 28.00 |
| 01-421-100 | DN100 | PN40 | 175 | 336 | 235 | 39.50 |
| 01-421-125 | DN125 | PN40 | 200 | 387 | 270 | 61.00 |
| 01-421-150 | DN150 | PN40 | 225 | 466 | 300 | 84.00 |
| 01-421-200 | DN200 | PN40 | 275 | 588 | 375 | 170.00 |
| 01-421-250 | DN250 | PN40 | 325 | 690 | 450 | 283.00 |
| 01-421-300 | DN300 | PN40 | 375 | 785 | 515 | 414.00 |
